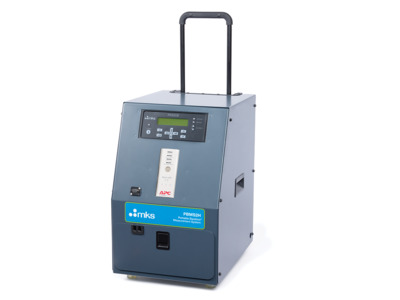

New PBMS2H Portable Two-Channel Baratron® Measurement System
New PBMS2H Portable Two-Channel Baratron® Measurement System
PBMS2H is a portable two-channel pressure standard with a pressure measurement range of 10-5 to 1000 Torr for real-time in situ pressure verification applications.

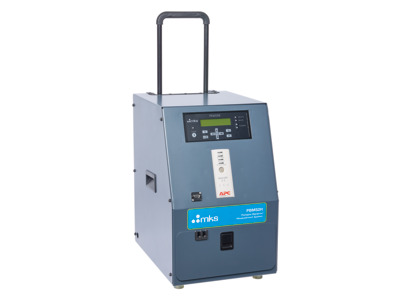

The MKS PBMS2H is suitable for use in the calibration lab, production floor, or cleanroom environment. The system includes one or two 627H Baratron® capacitance manometers, a PR4000B display and an uninterruptable power supply all housed in a rugged wheeled cart with an extendable handle for easy maneuvering.
The manometers are temperature-controlled at 45°C to maintain stability and high accuracy. The front face of the cart is angled upward to allow for easy viewing of the digital LCD readout.
- Wide pressure range (0.02 to 1000 Torr Full Scale)
- Wetted materials (Inconel®, Incoloy® alloy, stainless steel)
- NIST traceable calibration
- RS-232 connectivity
- Portable design with integrated UPS
- One or two temperature-controlled manometers See All Features
Configuration Options
The following options are available for the PBMS2H Portable Baratron Measurement System
Ordering Code Example: PBMS2H0112BU2
| Configuration Option | Option Code |
|---|---|
| PBMS2H Portable Baratron Measurement System | PBMS2H |
Range, Manometer 1 | |
| 0.02 mmHg | U2 |
| 0.05 | U5 |
| 0.1 | 0.1 |
| 1 | 1 |
| 10 | 11 |
| 100 | 12 |
| 1000 | 13 |
Range, Manometer 2 | |
| 0.02 mmHg | U2 |
| 0.05 | U5 |
| 0.1 | 0.1 |
| 1 | 1 |
| 10 | 11 |
| 100 | 12 |
| 1000 | 13 |
| None | 0 |
Fittings | |
| 8 VCR female | B |
| NW16KF | D |
Input Power | |
| Standard USA & Canada input power 110 VAC, 60 Hz | U |
| 220 VAC, 50 Hz | F |
| 100 VAC, 50/60 Hz | J |
Interface | |
| RS-232 (standard) | 2 |
Specifications
- Transfer Standard627H Baratron® capacitance manometer absolute pressure sensor (NIST traceable)
- Resolution1 x 10-4
- Fitting TypeNW16KF, 8 VCR® female
- Operating Temperature15-40°C, temperature controlled to 45°C
- ReadoutPR4000B Versatile 4½ place digital LCD display/power supply
- Power Requirements110 VAC, 60 Hz; 220 VAC, 50 Hz; 100 VAC, 50/60 Hz; 3A
- Warm-up Time4 hours (Use of the internal 280 VA UPS will keep the transfer standard warmed up and ready for immediate use for at least 60 minutes.)
- EnclosureMetal wheeled cart with extendable handle and tilted front panel
- Weight75 lb. (34 Kg)
- Full Scale Range0.02, 0.05, 0.1, 1, 10, 100, 1000 Torr
- ConfigurationRemovable transfer standard (15 ft cable)
Features
Key Features:
- Accurately measures diverse pressures
- Ensures long-lasting performance and corrosion resistance
- Ensures confident, accurate pressure readings traceable to national standards
- Facilitates simplified operation with clear display
- Enables seamless integration for efficient data collection and analysis
- Allows for convenient power backup, transport, and setup in various locations
A typical process pressure set point verification set up.
The cart’s pressure standards are removed from its storage drawer and placed near the process tool’s manometer port. This is facilitated by using a combination isolation valve such as the MKS’ IDA™ In Situ Diagnostic Access Isolation Valve. When the pressure standard is connected to the isolation valve’s access port, it can be used to verify the accuracy of the gauge and check the system’s set point pressure.
Frequently Asked Questions
- What is the PBMS2H Portable Baratron® Transfer Standard?AnswerThe PBMS2H is a high-accuracy portable pressure measurement device designed for versatile use in laboratories and production environments. It provides precise pressure readings across a wide range of pressures, making it an essential tool for various applications.
- What pressure range can the PBMS2H measure?AnswerThe PBMS2H can measure pressures from 0.02 Torr to 1000 Torr Full Scale Range, allowing for flexibility in different measurement scenarios.
- What accuracy options are available?AnswerThe 627H Baratron Capacitance Manometers offer an accuracy of ±0.12% of Reading for pressure ranges of 1 Torr and above. For 0.05 and 0.1 torr the accuracy is 0.15% of Reading and for 0.2 torr the accuracy is ±0.25% of Reading.
- How does the built-in UPS work?AnswerThe built-in Uninterruptible Power Supply (UPS) allows the PBMS2H to operate without warm-up delays for up to 60 minutes, ensuring that you can start measuring immediately when needed.
- Is the PBMS2H easy to transport?AnswerYes! The PBMS2H features a wheeled caddy with an extendable handle, making it easy to move around your facility or between locations.
- Can I use the PBMS2H for in situ verifications?AnswerAbsolutely! The PBMS2H is designed to minimize downtime by allowing you to perform in situ verifications without needing to remove existing process gauges.
- What materials are used in the construction of the PBMS2H?AnswerThe wetted surfaces of the PBMS2H are made from corrosion-resistant Inconel® and stainless steel, ensuring compatibility with a wide range of gases and durability over time.
- What accessories are available for the PBMS2H?AnswerAvailable accessories include isolation valves for lower pressure ranges, bellows adapters for flexible connections, and IDA™ Valves for simplified access to process chambers.
- What are the operating temperature limits for the PBMS2H?AnswerThe PBMS2H operates effectively within a temperature range of 15° to 40°C.
- How can I customize my PBMS2H?AnswerCustomization options include selecting your ideal pressure range, preferred input power configuration, and interface options (RS-232).
- Where can I find more information or purchase the PBMS2H?AnswerFor more details or to make a purchase, please visit our website here or contact our sales team directly. If you have any other questions or need further assistance, feel free to reach out!
- How long is the battery life with the built-in UPS?AnswerThe built-in UPS provides up to 60 minutes of continuous operation, ensuring uninterrupted measurements even during power outages.
- Can the PBMS2H be used with corrosive gases?AnswerYes, the PBMS2H features corrosion-resistant materials such as Inconel® and stainless steel, making it suitable for use with a wide range of gases.
- What industries can benefit from using the PBMS2H?AnswerThe PBMS2H is suitable for a wide range of industries, including: semiconductor manufacturing, pharmaceutical production, aerospace and defense , and research and development.
- Does the PBMS2H come with a warranty?AnswerYes, the PBMS2H comes with a standard manufacturer's warranty. Please refer to the full specifications for details.
- How do I get technical support for the PBMS2H?AnswerContact our customer support team by phone or email for assistance with any technical questions or issues.
- What types of gases is the PBMS2H compatible with?AnswerThe PBMS2H features Inconel® and stainless steel wetted surfaces, making it compatible with a wide variety of gases.
- Is the PBMS2H compliant with regulatory standards?AnswerYes, the PBMS2H is NIST-traceable and supports ISO9000 and other regulatory requirements.
- What accessories are recommended for specific applications?AnswerIsolation valves, bellows adapters, and IDA™ valves are available to enhance functionality for specific needs.
- How portable is the PBMS2H?AnswerThe PBMS2H features a wheeled caddy with an extendable handle, making it easy to transport between locations.
- What is the display visibility like in different environments?AnswerThe 15-degree tilt stand ensures optimal visibility in any setting, whether in a lab or on the production floor.
- Does the PBMS2H require frequent maintenance?AnswerNo maintenance is required but it is recommended that the 627H Baratrons be calibrated on a yearly basis at one of our many MKS service centers.
- How does the PBMS2H ensure accuracy across a wide range of pressures?AnswerThe PBMS2H combines a high-performance AA06A Baratron® pressure sensor with advanced signal conditioning to deliver premium accuracy across its full range of pressures.
- How does the PBMS2H compare to previous models?Answer
In comparison to previous models, such as the PBMS2F Two-Channel Portable Baratron® Measurement System, the PBMS2H offers several enhancements:
- The PBMS2H now features the PR4000B Readout/Power supply which offers additional functionality over the PR2000.
- The 627H is the updated version of the 627F Baratron Capacitance Manometers.
- The interconnecting cable length has been increased from 10ft to 15 offering additional flexibility when positioning the PBMS2H cart.
- The 5in wheels are antistatic and cleanroom suitable and their larger size makes it easier to move the cart across the facility floor.
