Temperature Converters
Temperature Converters

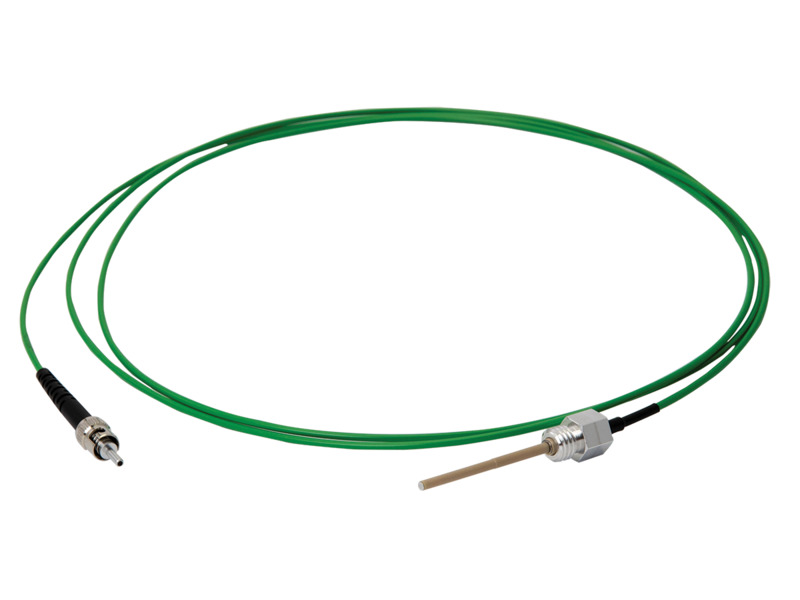

MKS’ fiber optic multichannel temperature converters are compatible with all fiber optic sensor probes and offer industry leading accuracy, repeatability, and reliability for temperature monitoring applications.
- Highly accurate and repeatable across full temperature range
- Probes and converters are fully interchangeable
- Systems do not require recalibration
- Excellent sensor-to-sensor precision See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

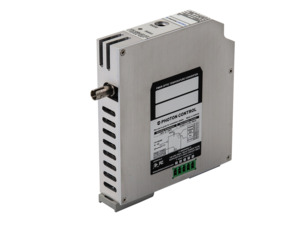

 | FTC-DIN-GTTemperature Sensor Converter, Single Channel | |||||
 | FTC-MC5Temperature Converter, Multichannel |
Specifications
| Models | | | |
|---|---|---|---|
| Number of Channels | 1 to 5 | 1 | |
| Communication Protocol | Modbus® RTU, Analog or EtherCAT® | Modbus® RTU and Analog | |
| Analog Output | 4-20 mA (16-bit DAC) | 4-20 mA (16-bit DAC) | |
| Stability | ±0.1ºC (2σ) | <0.3°C over 100s at 1 Hz (2σ) | |
| Input Power | 24 VDC | 24 VDC | |
| Dimensions | 141 mm H x 25 mm W x 100 mm D | 114 mm H x 22.5 mm W x 98 mm D | |
| Operating Temperature Range | 5-60ºC | -20 to 60°C |
Resources
Literature
Single Channel Temperature Converter (FTC-DIN-GT)(634.9 kB, PDF) Multichannel Temperature Converter (FTC-MC5)(664.4 kB, PDF)
