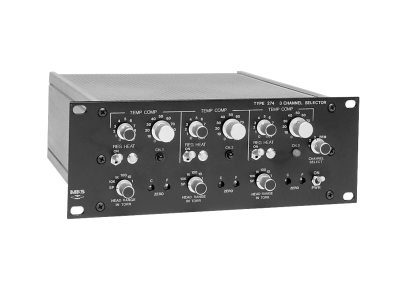

274B Three-Channel Sensor Multiplexor
274B Three-Channel Sensor Multiplexor
The 274B Three-Channel Sensor Multiplexor allows a single signal conditioner to operate as many as three (3) high-accuracy Baratron® sensors. The 274B provides heater power for the temperature-controlled sensors such as the new AA06A & AD06A, as well as 590, 690, and 698 pressure sensors, keeping all sensors at their specified operating temperature and waiting for selection for readout with the 670 signal conditioner.
- Used with high-accuracy Baratron® capacitance manometers
- Allows a single signal conditioner to operate up to 3 high-accuracy Baratron® sensors
- Provides heater power for the temperature-controlled sensors See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 274BMultiplexor, Three-Channel Sensor, 274B |
Specifications
- TypeMultiplexor
- Channels3
- Output Power±15 VDC @ 1.5 Amps
- Output Signal1 analog output per channel with 16 - bit resolution
- InterfaceRS232
- For Use WithAA06A, AD06A, 690A, 698A sensors and 670C Display Unit
- MemoryNon-volatile
