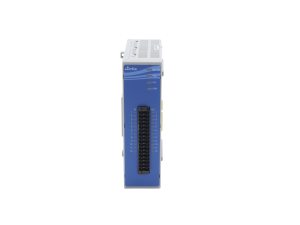

Digital Input/Output Modules
MKS digital input/output modules provide a compact and high density solution for integrating digital input and output channels with MKS PAC or CM modules. Each DIO module supports 12 digital inputs and 12 digital outputs.
- 12 digital inputs and 12 digital outputs
- compact and high density solution
- 0-24V source or sink See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

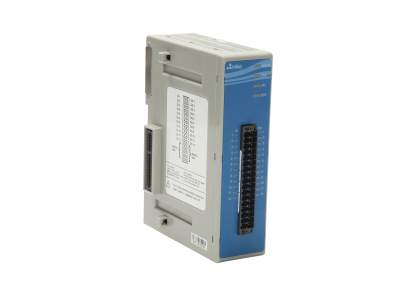

 | AS11893G-02Digital IO Module, 12 Source Inputs, 12 Source Outputs, 24 VDC Logic | |||||
 | AS11893G-11Digital IO Module, 12 Sink Inputs, 12 Sink Outputs, 24 VDC Logic |
Specifications
- TypeDigital Input/Output Module
- Number of Inputs12
- Input TypeSink or Source
- Number of Outputs12
- Power Consumption@ 200mA ≥ 24V_IO@ 2.5Amp, 24V_CORE@ 0.15Amp (per module) Assuming all DOs are loaded
- Input Isolation2.5 kVrms
- DI refresh rate10µs or 1ms
- Debounce FilterFixed to 4 cycles of DI Refresh Rate (10.8 µsec)
- Logic Level24 VDC (8VDC - 30 VDC)
- Maximum update rate25 µSec
- Output TypeOpen collector sink/source
- ProtectionESD to IEC 1000-4-2 ±4kV contact, DC + 5% (each channel)
- Pull Up/Down Value22K
- Sink Input Logic Level24VDC ±5%
- Sink Input Nominal Load Impedance6 kOhm
- Sink Input Current, Maximum OFF2.25mA (10.7 V)
- Sink Input Current, Minimum ON3.3mA (4.5 V)
- Sink Input Current, Maximum ON4.7mA
- Sink Output Maximum thermal current limit (ON)2A per bank of 6
- Sink Output Maximum Available Current Sink (ON)200mA
- Sink Output Maximum Leakage Current (OFF)0.1mA (output tied to 24v)
- Sink Output Maximum Voltage Drop (ON)Maximum 1.1v @ 200mA
- Sink Output Minimum Thermal Current Limit (ON)1A per bank of 6
- Sink Output Maximum Inductive Load Energy, 1Hz Cycled60mJ
- Source Input Logic level24v
- Source Input High Voltage Range OFF12.8V (2.15 mA)
- Source Input Low Voltage Range ON15V (2.5 mA)
- Source Input Input Current, Maximum ON4.7mA
- Source Input Nominal Load Impedance6 kOhm
- Source Output Maximum Available Current Source (ON)200mA
- Source Output Maximum Thermal Current Limit (ON)2A per bank of 6
- Source Output Maximum Leakage Current (OFF)0.1mA (output tied to ground)
- Source Output Minimum Thermal Current Limit (ON)1A per bank of 6
- Source Output Output High VoltageMinimum 23.7V @ 200mA
- Source Output Maximum Inductive Load Energy, 1Hz Cycled60mJ
- Operating Temperature0 to 55°C, with 2°C upper limit reduction per 1000 ft above sea level
- Storage Temperature-40°C to 85°C
- Altitude0-10,000 ft above sea level
- Humidity5-85% non-condensing
- Dimensions35 x 125 x 92.3 mm (1.4 x 3.3 x 4.9 inches) (W x H x D)
- MountingDIN rail
Features
MKS Automation Platform
These modules are part of the MKS Automation Platform that provides a modular, scalable and configurable solution to meet your automation and control requirements. Designed to provide a complete automation solution to improve operational and productivity efficiencies, the Automation Platform enables faster implementations, provides lowest total cost of ownership, and improves utilization of existing tools and assets.
Resources
Drawings & CADs
MKS DIO Digital Input/Output Module Model File(40.3 MB, STEP)
