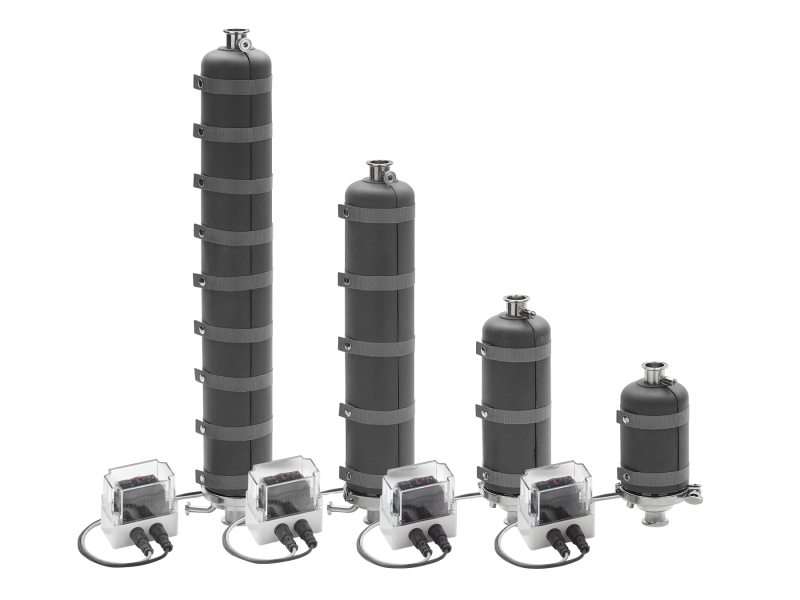

240 VAC Silicone Filter Housing Heater Jackets with Communication
240 VAC Silicone Filter Housing Heater Jackets with Communication
These 240 VAC filter housing heaters feature a temperature controller with an alphanumeric display and LED status indicators for local manual adjustments. The controller also includes Modbus RTU communications for remote control and monitoring. These filter housing heaters consist of molded silicone foam with a thermocouple embedded in the heater mat. The contoured design conforms to the housing body, preventing heat loss.
- Temperature controller with display and ModBus RTU communications
- 200-240 VAC power requirement
- Heater jacket, controller and cables are certified to NEMA 4X requirements
- User-adjustable and resettable set points for advanced process control
- Specially designed for optimum performance and increased uniformity See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 48-3205-1-XFilter Housing Heater, 240V, 5 in., Modbus RTU, Flying Lead Power Cable | |||||
 | 48-3210-1-XFilter Housing Heater, 240V, 10 in., Modbus RTU, Flying Lead Power Cable | |||||

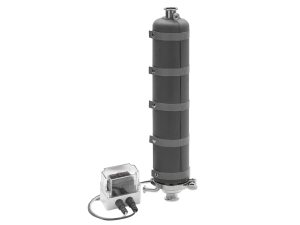

 | 48-3220-1-XFilter Housing Heater, 240V, 20 in., Modbus RTU, Flying Lead Power Cable | |||||

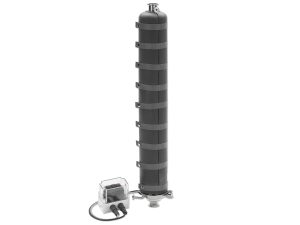

 | 48-3230-1-XFilter Housing Heater, 240V, 30 in., Modbus RTU, Flying Lead Power Cable |
Specifications
- TypeFilter Housing Heater
- SeriesSeries 48
- Set Point95°C (203°F)
- Controller ModuleDisplay and Modbus RTU Communications
- Foam Thickness0.5 in. (12.7 mm)
- Heating Element MaterialTeflon-insulated Wire
- Enclosure MaterialPolycarbonate Lid, ABS Base
- Insulation MaterialMolded Silicone Foam
- Cover MaterialFiberglass-reinforced Silicone
- ConnectorBulgin Mini Buccaneer
- Voltage Requirements200-240 VAC
- ComplianceCE, UL E493192, cUL E493192, SEMI S2, NEMA 4X
Features
Display and Communications Temperature Controller
The temperature controller manages all of the functions for the heater, including: temperature control, thermal safety, and operating status notification via three colored LEDs. The Display and Communications Module includes all the functionality of the Display Module, but adds Modbus RTU communications with an RS485 interface. This allows users to remotely adjust the operating parameters and monitor heater operating status. The temperature controller is housed inside a protective NEMA 4X-rated enclosure that is resistant to water and dust. The enclosure is also resistant to corrosion and damage from ice buildup.
Filter Heater Design
The Series 48 filter housing heaters consist of specially designed molded silicone foam for optimum performance and increased thermal uniformity with a thermocouple embedded in the heater mat for tight temperature control. The contoured design conforms to the housing body, preventing heat loss. Corrosion-resistant stainless steel snaps allow the heaters to be easily removed for filter cartridge replacement. External heater surfaces safe to touch.
Applications
Series 48 filter housing heaters are used in conjunction with sterile vent and process filter housings and are ideally suited for processes such as:
- Bioprocessing and Pharmaceutical Process Fluids
- Fermentation
- Product Recovery
- Water for Injection
- Filtration and Purification Processes
- Skidded Systems
- Tanks and Vessels
The NEMA-rated heaters allow for installation in the harshest of environments. The units can be mounted in any location where moisture is present, including clean-in-place (CIP) wash-down areas.
