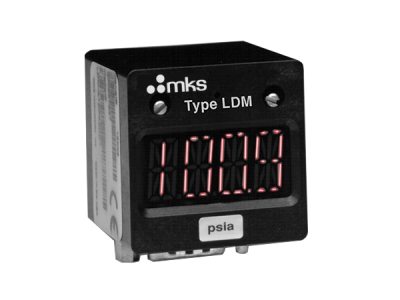

LDM-A and LDM-D Local Pressure Display Modules

LDM local display modules are designed to be used with many MKS 700 and 800 Baratron® pressure transducers for local display of pressure in real time and in your specified engineering units. Installed "in line" between the pressure transducer and host system/power supply, no additional cabling is required.

Large red LED or LCD displays for easy reading, even from a distance
LDM-D offers user-configurable engineering units
No additional cables needed
Small size allows placement on individual gas sticks

See All Features

Description	Compatibility	Channels	Type	Use	Price
LDM-A13TA2AA1Local Display Module, 1000 Torr, Absolute Calibration, 0-10 VDC, DB9, Transducer Mounted	UNIVERSAL	1	Display	MKS 700 and 800-Series Baratron® Pressure/Vacuum Transducers (Except Type 89xB Products)	$561
LDM-A33PA3CC1Local Display Module, 3000 PSI, Absolute Calibration, 0-5 VDC, 15-pin HD, Transducer Mounted	UNIVERSAL	1	Display	MKS 700 and 800-Series Baratron® Pressure/Vacuum Transducers (Except Type 89xB Products)	$561
LDM-ARDPC4DD2Local Display Module, 250 PSI, Compound Calibration, 4-20 mA, Bendix, Panel Mount	UNIVERSAL	1	Display	MKS 700 and 800-Series Baratron® Pressure/Vacuum Transducers (Except Type 89xB Products)	$640
LDM-D12PA2CC1Local Display Module, 100 PSI, Absolute, 0-10 VDC, 15-pin HD, Adjustable Units	UNIVERSAL	1	Display	MKS 700 and 800-Series Baratron® Pressure/Vacuum Transducers (Except Type 89xB Products)	$534

Configuration Options

Please see datasheet for product options.

	Description
	LDM-A Local Display Module, 700 and 800 Series Baratron® Transducers
	LDM-D Local Display Module, 700 and 800 Series Baratron® Transducers, Adjustable Units

Specifications

Display
LDM-A: 3.5 place red LED, 7-segment, 0.37 in. tall
LDM-D: 4 place red LED, 16-segment, 0.5 in. tall.
Display Units
LDM-A: psi, in Hg, mm Hg (Torr), bar, Pa, or in H2O
LDM-D: PSIA with front-panel switch for kPa, bar, or mmHg/Torr
Number of Channels
1
Input Signal
LDM-A: 0-5 VDC, 0-10 VDC, 4-20 mA
LDM-D: 0-10 VDC

Output Signal
LDM-A: 0-5 VDC, 0-10 VDC, 4-20 mA
LDM-D: 0-10 VDC
Operating Temperature
0° to 50°C
Compliance
EMC Directive 2014/30/EU

Features

LDM-A Version Features

The LDM-A model uses advanced analog electronics, and has a 9-pin D-subminiature, 15-pin high density D-subminiature, or Bendix® electrical connector that can mount directly to the mating electrical connectors of MKS 740B, 742B, 750B, 752B, 840B, 842B, 850B, 852B, 870B, 872B, AA07A and AA08A Baratron pressure transducers. For applications with space constraints around the gas line, it can also be panel-mounted remotely and connected to the transducer via a separate cable. Pressure ranges from 10 Torr to 3000 PSI are available, as are a wide range of options to allow custom configuration to nearly any requirement. Versions with 0-10 VDC or 0-5 VDC output have a high-visibility red LED display and operate on +13 to 32VDC input power, while models with 4-20 mA output signal use a large LCD display and require +13 to 36 VDC excitation.

LDM-D Version Features

The LDM-D is a low-cost model that uses microprocessorcontrolled electronics to generate a brilliant red LED display that can be easily switched to show the transducer’s pressure in alternate engineering units such as bar, kPa, and Torr/mm Hg. The LDM-D operates on input voltages of +12 to +32 VDC, and it has a 0-10 VDC output.

The LDM-D also can be mounted directly to compatible MKS 740B, 742B, 750B, 752B, 840B, 842B, 850B, 852B, 870B, 872B, AA07A and AA08A Baratron pressure transducers without requiring a separate power and signal cable to the host assuming that the transducer has a 15-pin high-density D-subminiature electrical connector. Pressure ranges of 1000 Torr (absolute), 60 PSIA, and 100 PSIA are available, as is mounting hardware to permit remote panel mounting and cables to connect to the pressure transducer.
