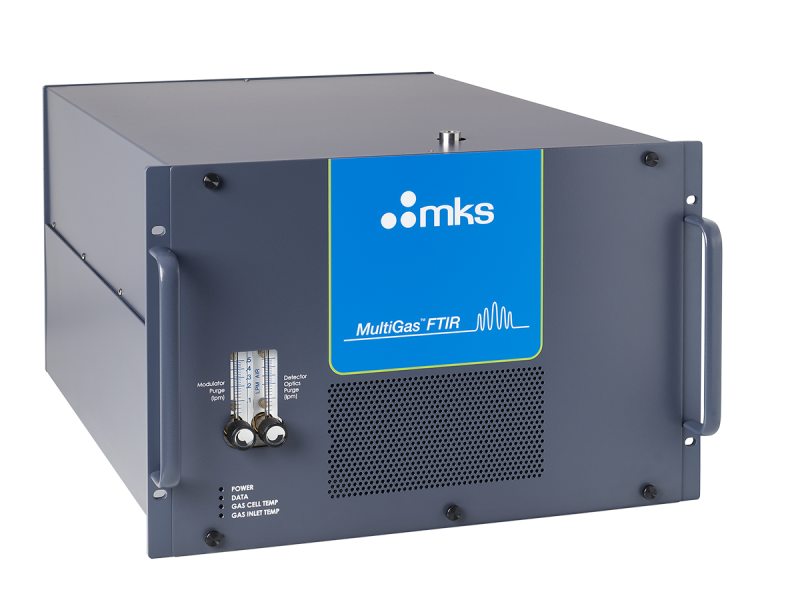

MultiGas™ 2030 FTIR Gas Analyzers

MultiGas 2030 Analyzers are FTIR-based analyzers capable of ppb sensitivity for multiple gas species in a variety of applications, such as automotive emissions measurement, stack emissions monitoring, process monitoring, ambient air monitoring, purity monitoring, and selective catalytic reduction performance monitoring. The MultiGas 2030 Analyzer can perform analysis in gas streams that contain up to 40% water and can simultaneously analyze and display more than 30 gases. With permanently stored calibration spectra, the need for costly gas cylinders is reduced. In addition, operators will find the robust, fully automated MultiGas 2030 Analyzer easy to operate and maintain.

Field technicians are not required for routine maintenance, simplifying user serviceability
Simultaneous analysis of more than 30 gases
Permanent & transferable calibration spectra reduces the need for gas cylinders
10-100 ppb sensitivity for many toxic gases
Patented, linearized detector response assures all instruments maintain the same calibration
User-friendly software for simple operation by reduces the need for highly-trained operators

See All Features

Description	Compatibility	Measurement Technique	Measurable Gases & Vapors	Measurable Range	Avail.
MULTIGAS-2030GMultiGas 2030G FTIR Gas AnalyzerMultiGas 2030G On-line FTIR Gas Analyzer	UNIVERSAL	FTIR Spectrometry	Most molecules except for He, Ar, N2, H2, and O2	Concentration setting between 10ppb and 100% Full Scale	Contact Us
MULTIGAS-2030-10HzMultiGas 2030 10 Hz FTIR Gas AnalyzerMultiGas 2030 10Hz FTIR Gas Analyzer	UNIVERSAL	FTIR Spectrometry	Most molecules except for Ar, He, N2, H2, and O2	Dependent upon gas, from ppm to %. Refer to Engine and Vehicle Application Package.
MULTIGAS-2031MultiGas 2031 Purity FTIR Gas AnalyzerMultiGas 2031 Purity FTIR Gas Analyzer, for Real-Time Trace Impurity Detection	UNIVERSAL	FTIR Spectrometry	Most molecules except for N2, H2, and O2	Full scale concentration setting between 10ppb and 100% Full Scale Spectral Resolution	Contact Us
MULTIGAS-2030-1065-READYMultiGas™ 2030 1065-ReadyMultiGas™ 2030 1065-Ready Engine & Vehicle Emissions Measurement and Certification Analyzer	UNIVERSAL	FTIR Spectrometry	Most molecules except for N2, H2, and O2	Dependent upon gas, from ppm to %. Refer to Engine and Vehicle Application Package.	Contact Us
MULTIGAS-2030-1065-READY-LVMultiGas™ 2030 LV 1065-ReadyMultiGas™ 2030 LV 1065-Ready, 5 Hz Engine & Vehicle Emissions, Low Volume Gas Cell	UNIVERSAL	FTIR Spectrometry	Most molecules except for Ar, He, N2, H2, and O2	Dependent upon gas, from ppm to %.	Contact Us
MULTIGAS-2030-CEM-CERTMultiGas™ 2030 CEM-CertMultiGas™ 2030 CEM-Cert Continuous Emissions Monitoring, MGS300 Certification	UNIVERSAL	FTIR Spectrometry	NO, NO2, N2O, SO2, CO, CO2, CH4, HCl, HF, NH3 , H2O		Contact Us
MULTIGAS-2030-CEMMultiGas™ 2030 CEMMultiGas™ CEM, Continuous Emissions Monitoring	UNIVERSAL	FTIR Spectrometry	Emission species including: NO, NO2, N2O, SO2, CO, CO2, CH4, HCl,HF, NH3 and H2O		Contact Us

Specifications

Type
FTIR Analyzer
Measurement Technique
FTIR Spectrometry
Measurable Gases & Vapors
Most molecules except for He, Ar, N2, H2, and O2
Measurable Range
Concentration setting between 10ppb and 100% Full Scale
FTIR
2102 Process FTIR
Spectral Resolution
0.5 – 16 cm^-1
Scan Speed
1 scan/sec @ 0.5 cm^-1
Scan Time
1 - 300 sec
Infrared Source
Silicon Carbide
Reference Laser
Helium Neon (15798.2 cm^-1)
Detector
LN-cooled MCT; TE-cooled MCT
Purge Pressure
20 psig (1.5 bar) max.
Spectrometer Purge Flow
0.2 L/min of dry nitrogen or CO2 free clean dry air with dewpoints below -70°C
Optics Purge Flow
0.2 L/min of dry nitrogen or CO2 free clean dry air with dewpoints below -70°C
Pressure Transducer
MKS Baratron capacitance manometer

Purge Connection
Swagelok quick connect
Communication
RJ-45 Ethernet
Dimensions
17.5 x 12.5 x 25.5 in. (width, height, depth)
Power Requirements
120 or 240 VAC, 50/60 Hz, 3 Amps
Weight
110 lbs. (50 kg)
Sample Temperature
Ambient to 191°C (calibration temperature dependent)
Sample Flow
0.2 - 60 LPM (model code dependent)
Sample Pressure
0.01 - 4 atm (calibration pressure dependent)
Gas Cell Materials
Nickel coated Al, Welded 316 stainless steel optional, dursan coating
Fittings
0.25 in. Swagelok, 0.25 in. VCR
Tubing
Heated 0.25 in. stainless steel, Heated 0.375 in. stainless steel
Mirrors
Nickel plated aluminum substrate, with rugged gold coating
Windows
ZnSe, CaF, BaF2, (others available)
O-rings
Kalrez, Viton (others available)

Features

MultiGas 2030 Innovations

MultiGas 2030 Analyzer is composed of a 2102 Process FTIR Spectrometer, our patented, high-optical-throughput sampling cell, applications-specific analysis software, and an instrument independent quantitative spectral library. It collects high-resolution infrared spectra which are analyzed using the quantitative spectral library. This provides an accurate, highly sensitive measurement of most gases and vapors.

MultiGas 2030 software features multi-point calibration curves that provide a dynamic range up to 9 orders of magnitude (ppb to 100%). Calibrations for many species are provided with the instrument, and additional calibrations can be generated by the user from gases of known concentration. Utilities in the software verify the performance of each instrument, which allows a calibration generated on one MultiGas 2030 Analyzer to be used on any other MultiGas™ 2030 Analyzer without alteration.
