Pressure Input Modules
Pressure Input Modules

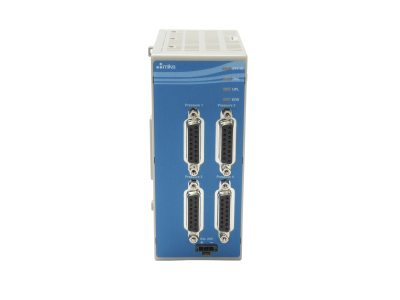

MKS Pressure Input Modules are a compact and high density solution for integrating MKS pressure devices with the MKS Automation Platform PAC or CM modules. Pressure Input Modules support 15 pin analog Baratron® transducers, Convectrons, Piranis, Piezos, and more! The Pressure Module has a direct 1:1 pin mapping of the pressure devices, so connected pressure devices are fully powered and controlled through the Pressure slice. Each Pressure Module supports integrating 4 MKS pressure devices.
- Supports 15-pin analog Baratron, Convectron, Pirani & Piezo transducers
- Direct 1:1 pin mapping of pressure devices
- Supports integration of 4 MKS pressure measurement devices See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | AS11900G-03Pressure Input Module, 15 pin D-Sub Connector, 4 Channel |
Specifications
- TypePressure Input I/O Module
- ADC Native Resolution14-bits
- AI latency and repeatabilityResponse Time: 300 µsec ±10%
- Number of Inputs4, Single Ended (1 for each pressure signal input)
- Output Voltage RangeVoltage: 0-10V @ 13 bit
- Power Consumption24 V Core: 3.5 W
24 V I/O: Max 120 W (When all 4 pressure devices consume 0.8 Amp max each from ±15 V power supply) - Anti-alias HW Filtering200 Hz ±20%, 6 dB/octave minimum
- Maximum Current Delivery per connector0.8 Amps
- Input Voltage24 VDC
- Maximum error over full range±0.15% of Full Scale (20 to 30°C)
- Minimum Input CMRR50dB, 0-1kHz
- Minimum Input Impedance1 Meg-ohm
- MTBF10 years at 80% confidence level
- ProtectionESD to IEC 61000-4-2 ±4 kV contact, short to 24 V, +15 V, or -15 V
- Sampling Rate6.25 kHz (160 µsec, for all 4 channels)
- Operating Temperature0 to 40°C, with 2°C upper limit reduction per 1000 ft above sea level
- Storage Temperature-40 to 75°C
- Altitudeup to 2000 meters
- Humidity5 - 95% non-condensing
- Dimensions52.5 x 125 x 92.3 mm (W x H x D)
- MountingDIN rail
Features
MKS Automation Platform
These modules are part of the MKS Automation Platform that provides a modular, scalable and configurable solution to meet your automation and control requirements. Designed to provide a complete automation solution to improve operational and productivity efficiencies, the Automation Platform enables faster implementations, provides lowest total cost of ownership, and improves utilization of existing tools and assets.
Resources
Drawings & CADs
MKS Pressure Input Module Model File(34.3 MB, STEP)
