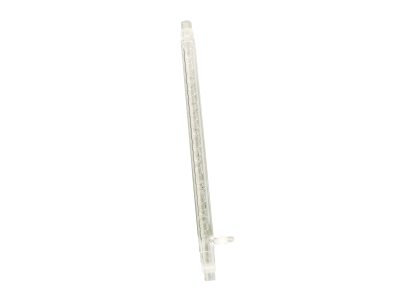

Static Mixer
Static Mixer
A contactor for dissolving ozone gas in fluids
The Static Mixer is designed to dissolve gases efficiently in fluids. Both gas and fluid are injected into the Static Mixer under pressure. A series of baffles converts the kinetic energy into turbulence, which results in improved mixing and solution.
- No moving parts, no contamination
- High efficiency mass transfer for maximum dissolved ozone
- Quartz and PFA/PTFE versions available to accommodate multiple chemistries See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | STATIC-MIXERStatic Mixer, Contactor for Dissolving Ozone Gas in Fluids |
Specifications
- TypeOzone Static Mixer
- Gas Flow RangeBetween 30% and 100% of the fluid flow (slm per l/min), 50% recommended
- Fluid Flow Range5-12 or 10-25 L/min recommended, depending on configuration
- Operating Pressure3.2 bargauge (46 psig) at 24°C (75°F)
1.5 bargauge (22 psig) at 130°C (266°F)
PFA 1.0 bargauge (15 psig) at 130°C (266°F), Quartz (maximum) - Gas Phase FittingsType 8: Flaretek compatible 3/8 in.
Type 12: Flaretek compatible 3/8 in.; Pillar 3/8 in. for PFA version available - Fluid Phase FittingsType 8: Flaretek compatible 1/2 in.
Type 12: Flaretek compatible 3/4 in.; Pillar 3/4 in. for PFA version available
Resources
Literature
Static Mixer(205.2 kB, PDF)
Drawings & CADs
Static Mixer Dimensional Drawing(103.2 kB, PDF)
