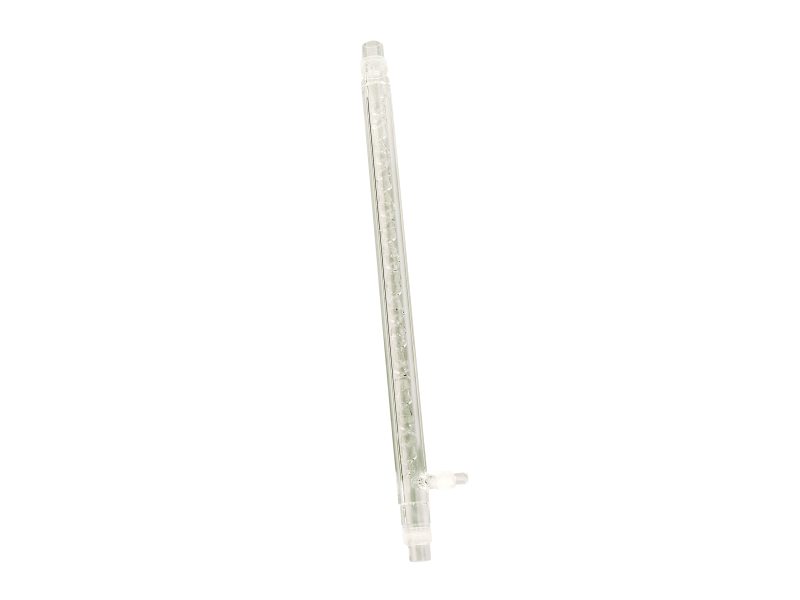

Static Mixer Contactor for Dissolving Ozone
Model: STATIC-MIXER
Static Mixer Contactor for Dissolving Ozone
Model: STATIC-MIXER
Overview
Overview
The Static Mixer is designed to dissolve gases efficiently in fluids. Both gas and fluid are injected into the Static Mixer under pressure. A series of baffles converts the kinetic energy into turbulence, which results in improved mixing and solution.
Technical Specs
- TypeStatic Mixer
- Gas Flow RangeBetween 30% and 100% of the fluid flow (slm per l/min), 50% recommended
- WeightType 8: 185 g (Quartz version), Type 12: 385 g (Quartz version) 325 g (PFA version)
- Fluid Flow RangeType 8: 5 - 12 L/min, Type 12: 10 - 25 L/min (recommended)
- Operating Pressure3.2 bargauge (46 psig) at 24°C (75°F), 1.5 bargauge (22 psig) at 130°C (266°F), PFA, 1.0 bargauge (15 psig) at 130°C (266°F), Quartz (maximum)
- Gas Phase FittingsFlaretek compatible 3/8 inch Pillar 3/8 inch for PFA version
- Outer DiameterType 8: 20 mm, Type 12: 27 mm
- Fluid Phase FittingsType 8: Flaretek compatible 1/2 inch, Type 12: Flaretek compatible 3/4 inch, Pillar 3/4 inch for PFA version
Technical Specs
- TypeStatic Mixer
- Gas Flow RangeBetween 30% and 100% of the fluid flow (slm per l/min), 50% recommended
- WeightType 8: 185 g (Quartz version), Type 12: 385 g (Quartz version) 325 g (PFA version)
- Fluid Flow RangeType 8: 5 - 12 L/min, Type 12: 10 - 25 L/min (recommended)
- Operating Pressure3.2 bargauge (46 psig) at 24°C (75°F), 1.5 bargauge (22 psig) at 130°C (266°F), PFA, 1.0 bargauge (15 psig) at 130°C (266°F), Quartz (maximum)
- Gas Phase FittingsFlaretek compatible 3/8 inch Pillar 3/8 inch for PFA version
- Outer DiameterType 8: 20 mm, Type 12: 27 mm
- Fluid Phase FittingsType 8: Flaretek compatible 1/2 inch, Type 12: Flaretek compatible 3/4 inch, Pillar 3/4 inch for PFA version
Resources & Downloads
Literature
Static Mixer(205.2 kB, PDF)
Drawings & CADs
Static Mixer Dimensional Drawing(103.2 kB, PDF)
