Sorry, this family of products is no longer available. The recommended replacement product is t2b-ethercat-exhaust-throttle-valves.

Specifications

  • Type

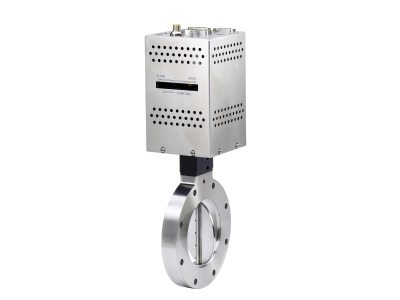

    T3B High Speed Exhaust Throttle Valves
  • Accuracy
    0.25% of set point, or 5mV (whichever is greater)
  • Control Range
    0.0001%-100% Full Scale (with Dual Transducer Input)
  • Operating Temperature
    Motor and Electronics: 0 to 40°C
    Valve Body: 0 to 105°C, 150°C (optional)
  • Storage Temperature
    -20 to 80°C
  • Seal Material
    Kalrez®, Chemraz®
    Others upon request
  • Power Requirements
    DeviceNet: 11-25 VDC
    Valve Power: 24 VDC @ <100 W maximum
  • Valve Speed
    High speed, direct drive non-sealing: <0.2 seconds (available in 4 inch and smaller sizes only)
    Standard speed, geared drives or F-seal versions: <0.5 - 1.0 seconds (size dependent)
  • Input-Output Signals
    Analog I/O: Pressure input (dual channel)- Nominally ±10 VDC, ±5 VDC and ±1 VDC are selectable
    Discrete I/O: Alarm trip point outputs - (2) relays @ 2.0A @ 30 VDC with status LEDs
  • Connectors
    15-pin female Type "D" each channel (Analog)
  • Switches
    Valve Open & Valve Close
  • Compliance
    CE
