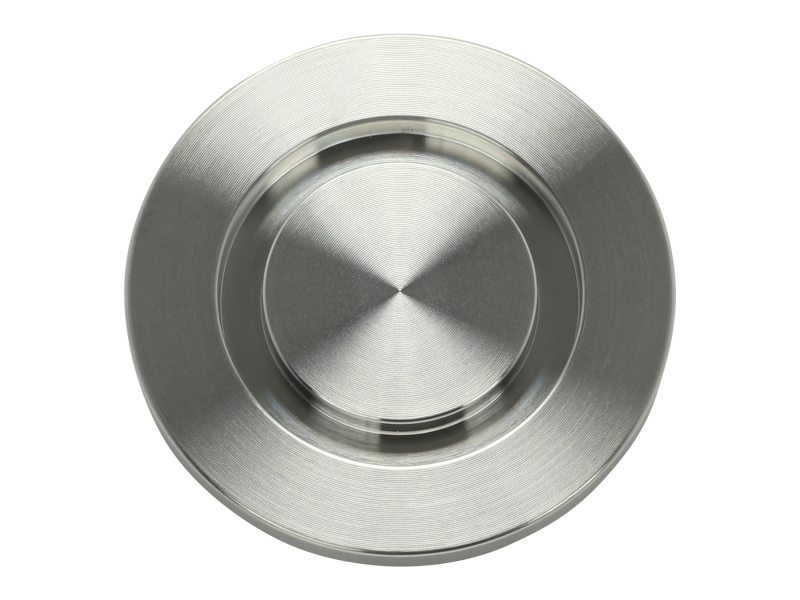

ISO-KF Stainless Steel Blank Flanges
Model: 100311703
ISO-KF Stainless Steel Blank Flanges
Model: 100311703

Overview
Overview
The 100311703 ISO-KF Stainless Steel Blank Flange is also referred to as a "Blank-Off" flange and is used to close off unused size NW25 ISO-KF vacuum flange ports. Series 31 ISO-KF vacuum components are designed for use at subatmospheric pressure and use standard interface dimensions defined by the International Standards Organization (ISO) allowing them to be interchangeable with other ISO-KF compliant components. Series 31 components can be used as modular building blocks to create vacuum piping systems. IS-KF flanges are "sexless" with a symmetrical seal so that so that components are rotatable. ISO-KF vacuum flanges are joined by inserting a centering ring between the two flange faces, and securing them with a flange encompassing clamp.
Technical Specs
- Component TypeBlank-Off Flange
- SeriesSeries 31
- Material304 Stainless Steel
- Flange TypeISO-KF
- Flange SizeNW25
- Tube ODBlank
- Thickness0.20 in. (5 mm)
- Dimension "A"0.20 in.

Technical Specs
- Component TypeBlank-Off Flange
- SeriesSeries 31
- Material304 Stainless Steel
- Flange TypeISO-KF
- Flange SizeNW25
- Tube ODBlank
- Thickness0.20 in. (5 mm)
- Dimension "A"0.20 in.
