ISO-KF Flange to Rubber Hose Adapters
Model: 100311805
ISO-KF Flange to Rubber Hose Adapters
Model: 100311805
Overview
Overview

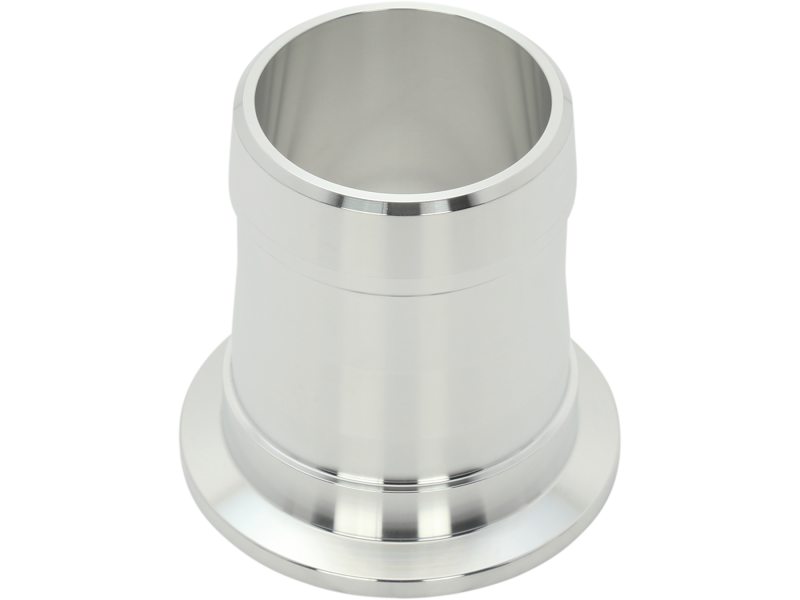

The 100311805 ISO-KF Flange Adapter is used to connect 1 1/2 or 1 5/8 inch diameter rubber hose to a NW40 size ISO-KF vacuum flange. This Series 31 accessory is used to connect rubber hose with standard vacuum hose bore sizes to ISO-KF vacuum flanges.
Technical Specs
- Component TypeHose Adapter
- SeriesSeries 31
- MaterialAluminum
- Flange TypeISO-KF
- Flange SizeNW40
- Length1.73 in. (44 mm)
- Hose Size1.5 or 1.625 in.

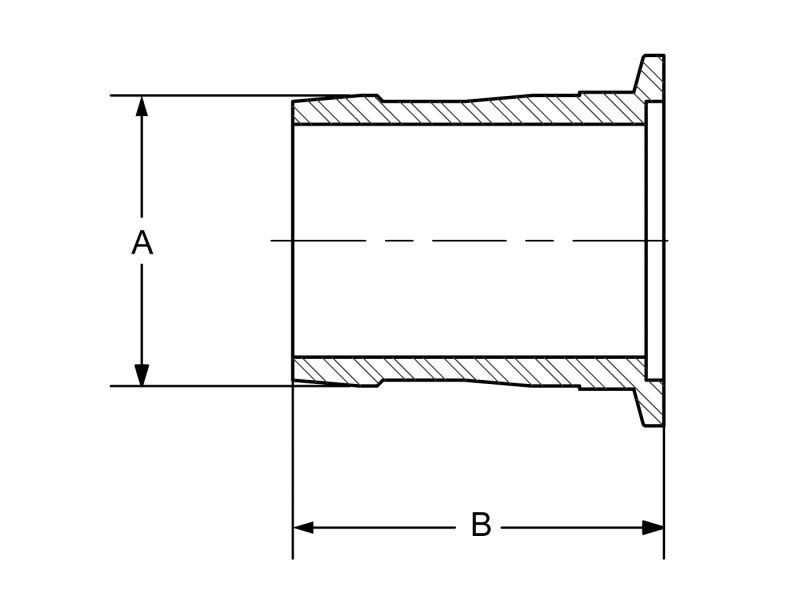

- Dimension "A"0.88 in.
- Dimension "B"1.73 in.
