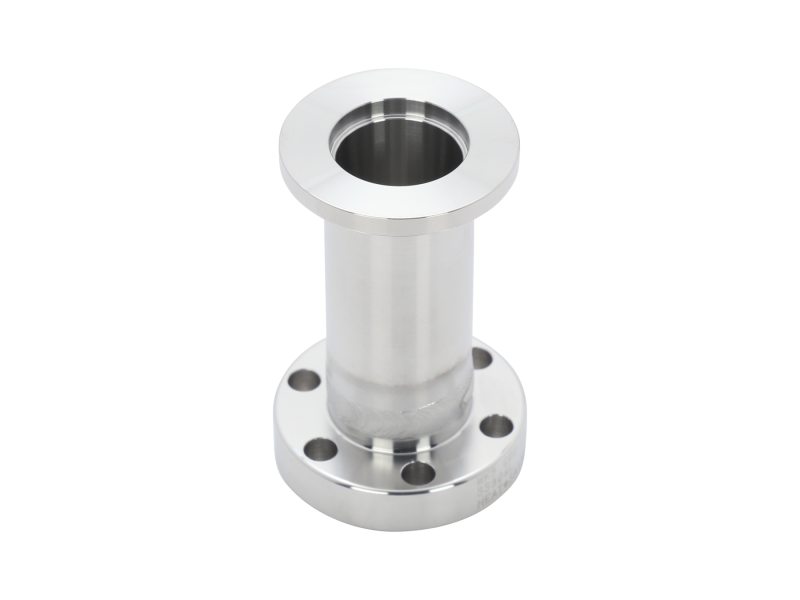

ISO-KF Flange to CF Flange Adapters
Model: 100315601
ISO-KF Flange to CF Flange Adapters
Model: 100315601
Overview
Overview
The 100315601 Flange Adapter is used to convert a size NW16 ISO-KF vacuum flange to a 1.33 inch CF flange and is made with 304 stainless steel. This Series 31 adapter is used to convert an ISO-KF flange for use with CF flange vacuum components.
Technical Specs
- Component TypeISO-KF to CF Flange Adapter
- SeriesSeries 31
- Material304 Stainless Steel
- Flange TypeISO-KF
- Flange SizeNW16
- Flange Size 21.33 in. CF
- Length2.08 in. (53 mm)
- Inner Diameter0.62 in. (16 mm)

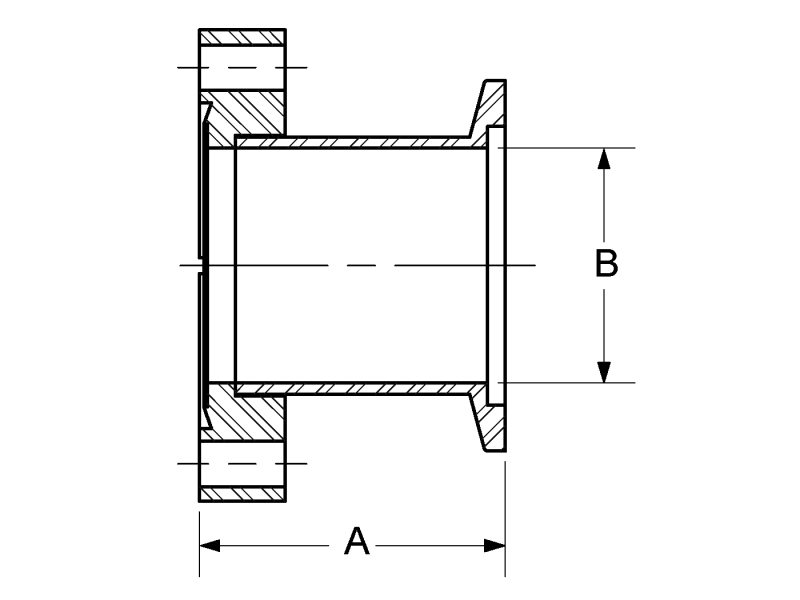

- Dimension "A"2.08 in.
- Dimension "B"0.62 in.
