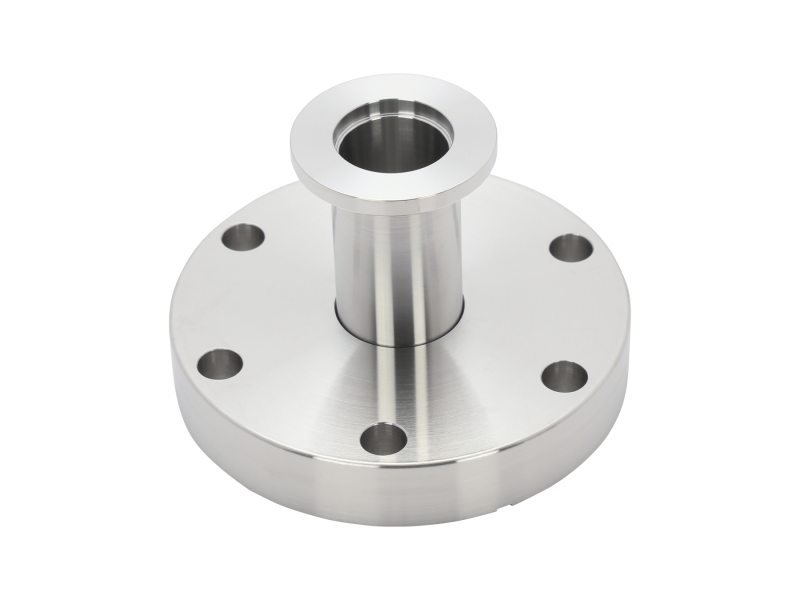

ISO-KF Flange to CF Flange Adapters
Model: 100315611
ISO-KF Flange to CF Flange Adapters
Model: 100315611
Overview
Overview
The 100315611 Flange Adapter is used to convert a size NW16 ISO-KF vacuum flange to a 2.75 inch CF flange and is made with 304 stainless steel. This Series 31 adapter is used to convert an ISO-KF flange for use with CF flange vacuum components.
Technical Specs
- Component TypeISO-KF to CF Flange Adapter
- SeriesSeries 31
- Material304 Stainless Steel
- Flange TypeISO-KF
- Flange SizeNW16
- Flange Size 22.75 in. CF
- Length1.78 in. (45 mm)
- Inner Diameter0.62 in. (16 mm)
- Dimension "A"1.78 in.
- Dimension "B"0.62 in.
