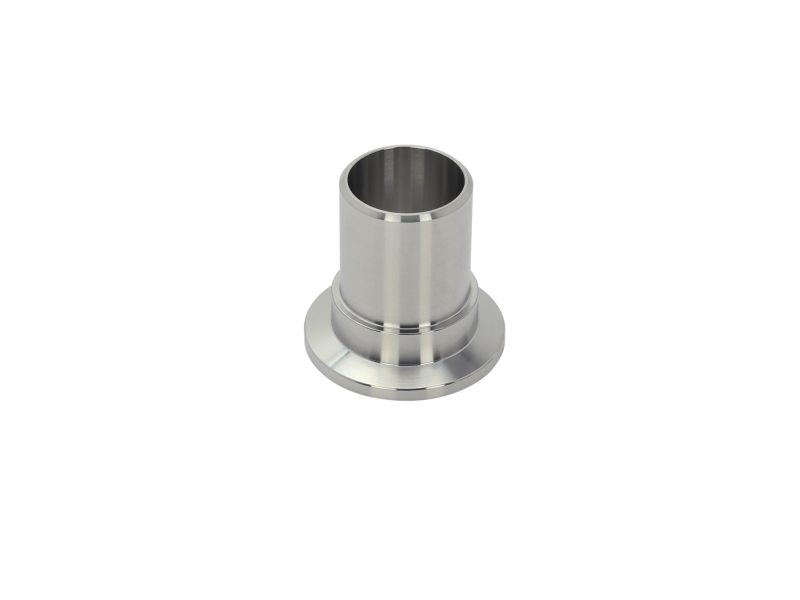

ISO-KF Flange to PVC Hose Adapters
Model: 100316403
ISO-KF Flange to PVC Hose Adapters
Model: 100316403
Overview
Overview
The 100316403 ISO-KF Flange Adapter is used to convert a NW25 size ISO-KF vacuum flange for use with 1 inch diameter PVC vacuum hose. This Series 31 adapter is made with 304 stainless steel and should be used with hose clamps.
Technical Specs
- Component TypeHose Adapter
- SeriesSeries 31
- MaterialStainless Steel
- Flange TypeISO-KF
- Flange SizeNW25
- Length1.5 in. (38.1 mm)
- Outer Diameter1.0 in. (25.4 mm)
- Hose Size1.0 in.
- Dimension "A"1.0 in.
- Dimension "B"1.50 in.
- Dimension "C"1.02 in.
