ISO-KF Flange to ASA Flange Adapters
Model: 100316705
ISO-KF Flange to ASA Flange Adapters
Model: 100316705
Overview
Overview

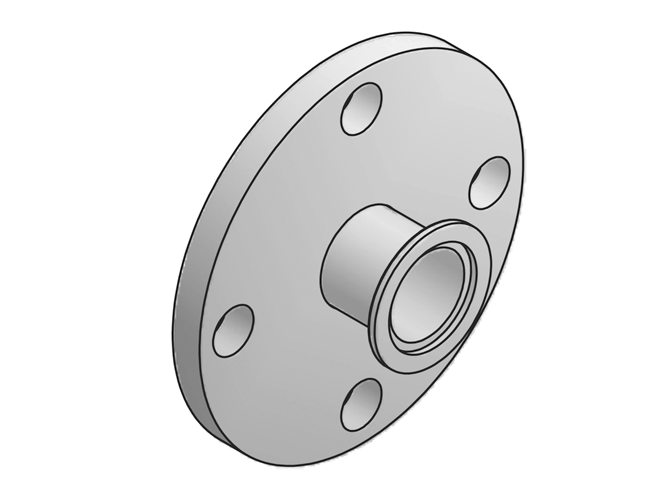

The 100316705 Flange Adapter is used to convert a size NW40 ISO-KF vacuum flange to a 2.0 inch ASA flange. This Series 31 flange adapter does not include an ASA O-Ring grove and is made with 304 Stainless Steel.
Technical Specs
- Component TypeISO-KF to ASA Flange Adapter
- SeriesSeries 31
- Material304 Stainless Steel
- Flange TypeISO-KF
- Flange SizeNW40
- Flange Size 22.0 in. ASA
- Length1.81 in. (46 mm)
- Inner Diameter1.33 in. (34 mm)
- Outer Diameter6.0 in. (152 mm)

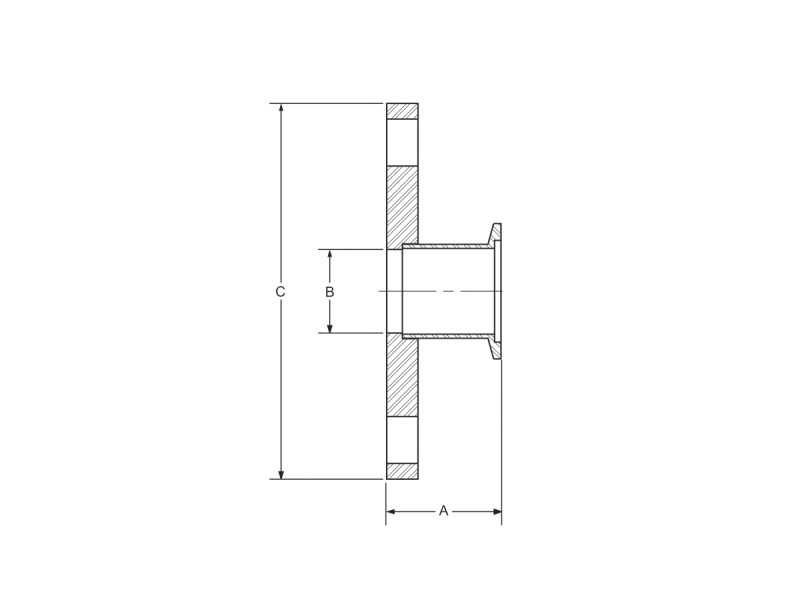

- Dimension "A"1.81 in.
- Dimension "B"1.33 in.
- Dimension "C"6.0 in.
