ISO-KF Flange to Pipe Compression Fitting Adapters
Model: 100316906
ISO-KF Flange to Pipe Compression Fitting Adapters
Model: 100316906
Overview
Overview

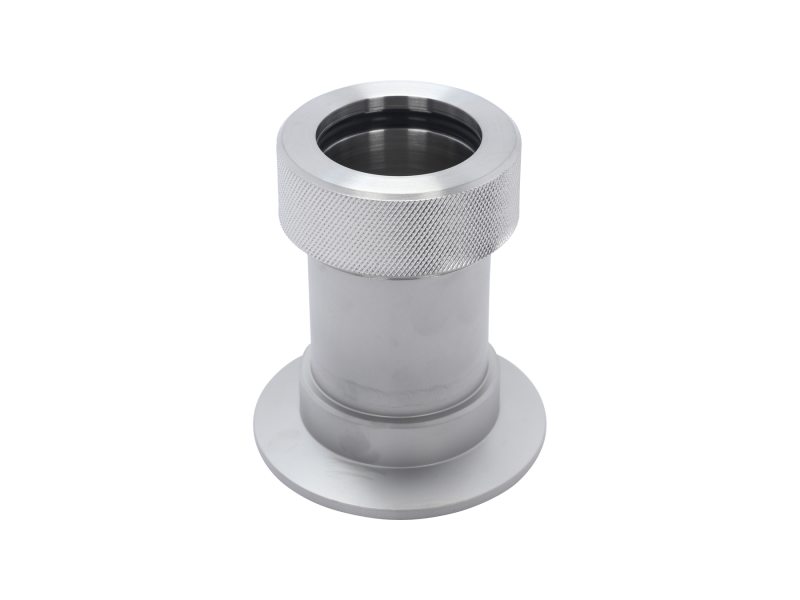

The 100316906 ISO-KF Flange Adapter is used to convert a NW50 size ISO-KF vacuum flange to a 1 1/82inch outer diameter pipe compression fitting. This Series 31 adapter is made with stainless steel and includes a Viton O-ring seal. The compression fitting can be tightened by hand and features compression connect for pipe insertion.
Technical Specs
- Component TypePipe Compression Fitting Adapter
- SeriesSeries 31
- MaterialStainless Steel
- Flange TypeISO-KF
- Flange SizeNW50
- Tube OD1.5 in.
- Length3.0 in. (76.2 mm)
- Inner Diameter1.25 in. (32 mm)

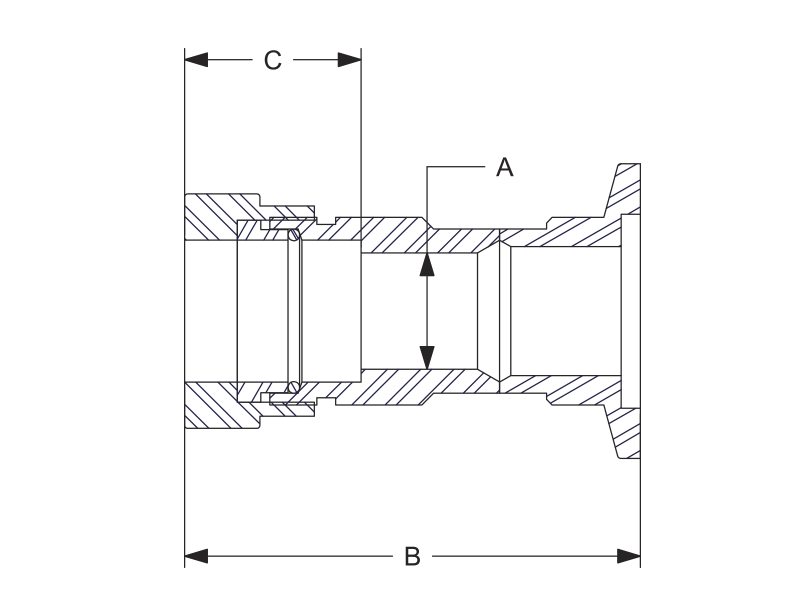

- Dimension "A"1.25 in.
- Dimension "B"3.0 in.
- Dimension "C"0.94 in.
