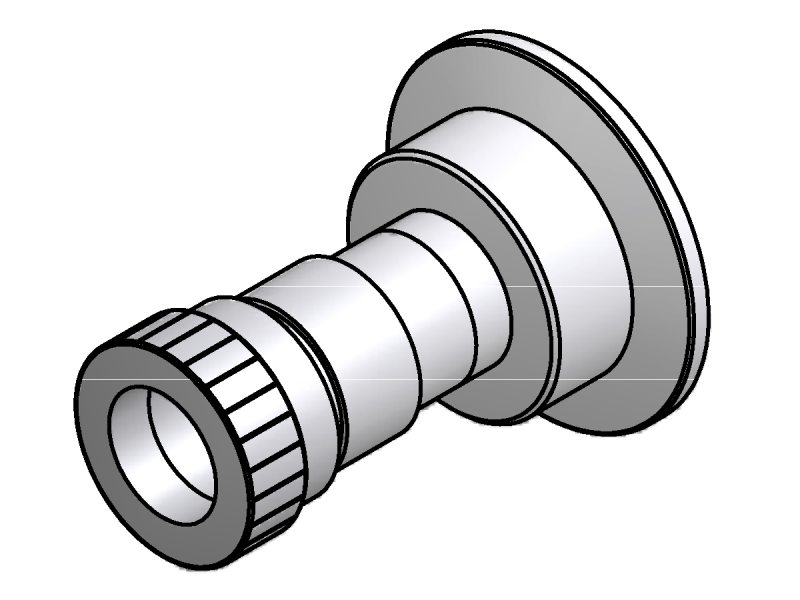

ISO-KF Flange to Pipe Compression Fitting Adapters
Model: 100316916
ISO-KF Flange to Pipe Compression Fitting Adapters
Model: 100316916
Overview
Overview
The 100316916 ISO-KF Flange Adapter is used to convert a NW50 size ISO-KF vacuum flange to a 2 inch outer diameter pipe compression fitting. This Series 31 adapter is made with stainless steel and includes a Viton O-ring seal. The compression fitting can be tightened by hand and features compression connect for pipe insertion.
Technical Specs
- Component TypePipe Compression Fitting Adapter
- SeriesSeries 31
- MaterialStainless Steel
- Flange TypeISO-KF
- Flange SizeNW50
- Tube OD2.0 in.
- Length3.4 in. (87 mm)
- Inner Diameter2.01 in. (51 mm)
- Dimension "A"2.01 in.
- Dimension "B"3.4 in.
- Dimension "C"2.5 in.
