ISO-KF Flange to VCR-F Adapters
Model: 100319216
ISO-KF Flange to VCR-F Adapters
Model: 100319216
Overview
Overview

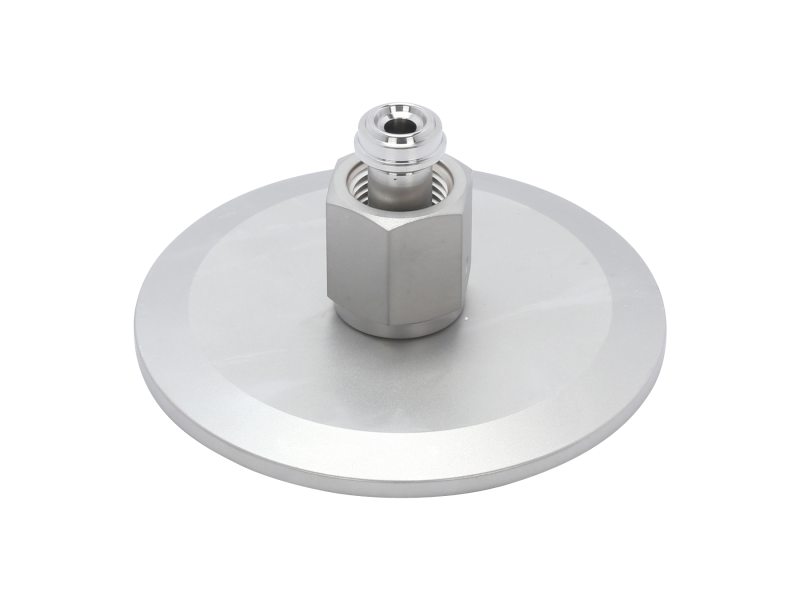

The 100319216 Flange Adapter is used to convert a size NW50 ISO-KF vacuum flange to a 1/4 inch Female VCR fitting. Series 31 flange adapters allow other flange types and fittings to be used with ISO-KF vacuum flanges.
Technical Specs
- Component TypeFemale VCR Fitting Adapter
- SeriesSeries 31
- MaterialStainless Steel
- Flange TypeISO-KF
- Flange SizeNW50
- VCR Fitting Size4 VCR Female
- Inner Diameter0.19 in. (5 mm)
- Dimension "A"1.40 in.
- Dimension "B"0.19 in.
