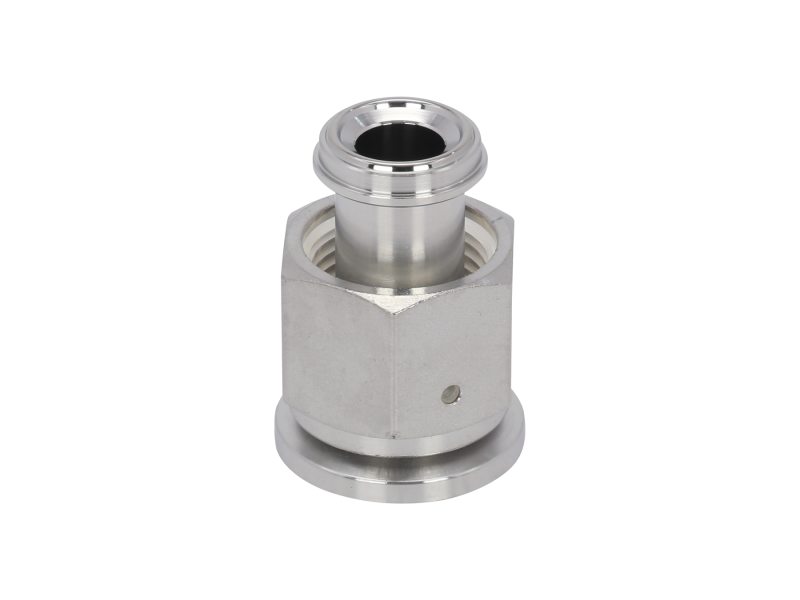

ISO-KF Flange to VCR-F Adapters
Model: 100319221
ISO-KF Flange to VCR-F Adapters
Model: 100319221
Overview
Overview
The 100319221 Flange Adapter is used to convert a size NW16 ISO-KF vacuum flange to a 1/2 inch Female VCR fitting. Series 31 flange adapters allow other flange types and fittings to be used with ISO-KF vacuum flanges.
Technical Specs
- Component TypeFemale VCR Fitting Adapter
- SeriesSeries 31
- MaterialStainless Steel
- Flange TypeISO-KF
- Flange SizeNW16
- VCR Fitting Size8 VCR Female
- Inner Diameter0.41 in. (10 mm)
- Dimension "A"1.63 in.
- Dimension "B"0.41 in.
