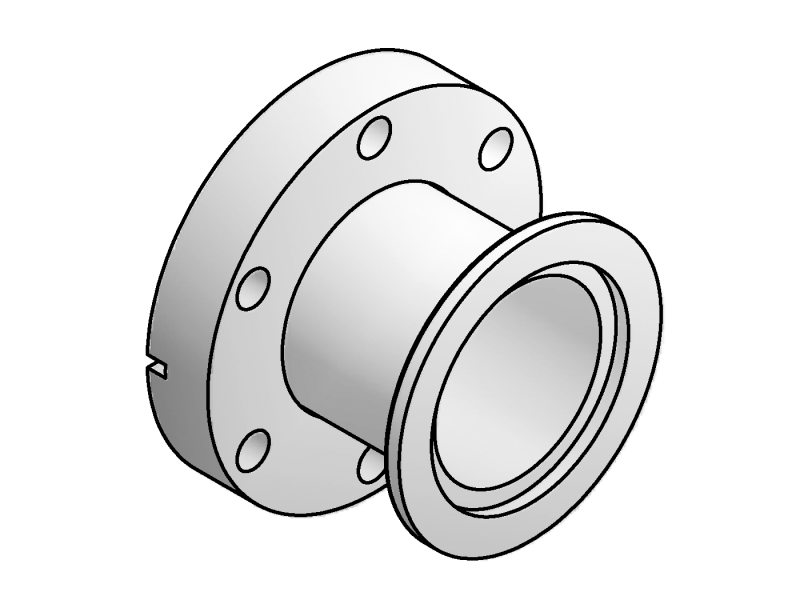

ISO-KF Flange to CF Flange Adapters
Model: 100319813
ISO-KF Flange to CF Flange Adapters
Model: 100319813
Overview
Overview
The 100319813 Flange Adapter is used to convert a size NW50 ISO-KF vacuum flange to a 2.75 inch CF flange and is made with 304 stainless steel. This Series 31 adapter is used to convert an ISO-KF flange for use with CF flange vacuum components.
Technical Specs
- Component TypeISO-KF to CF Flange Adapter
- SeriesSeries 31
- Material304 Stainless Steel
- Flange TypeISO-KF
- Flange SizeNW50
- Flange Size 22.75 in. CF
- Length2.11 in. (54 mm)
- Inner Diameter1.83 in. (46 mm)
- Dimension "A"2.11 in.
- Dimension "B"1.83 in.
