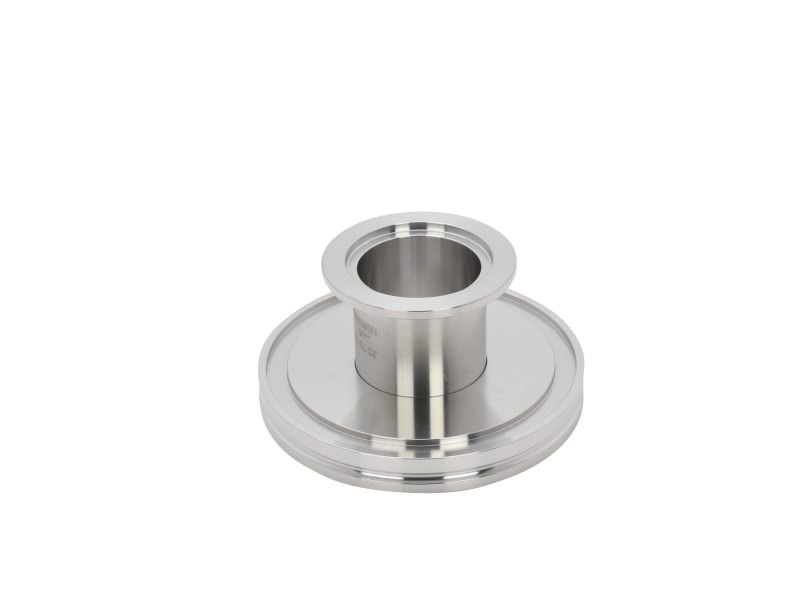

ISO-MF to ISO-KF Step Profile Flange Adapters
Model: 100762606
ISO-MF to ISO-KF Step Profile Flange Adapters
Model: 100762606
Overview
Overview
The 100765006 ISO-MF Flange Adapter is used to adapt a NW63 size ISO-MF flange to a size NW40 ISO-KF vacuum flange. This Series 76 adapter features a step profile reducer and is made of 304 stainless steel.
Technical Specs
- Component TypeStep Adapter
- SeriesSeries 76
- Flange TypeISO-MF
- Flange SizeNW63
- Flange Size 2ISO-KF NW40
- Material304 Stainless Steel
- Inner Diameter1.37 in. (35 mm)
- Length1.77 in. (45 mm)
- Dimension "A"1.77 in.
- Dimension "B"1.37 in.
