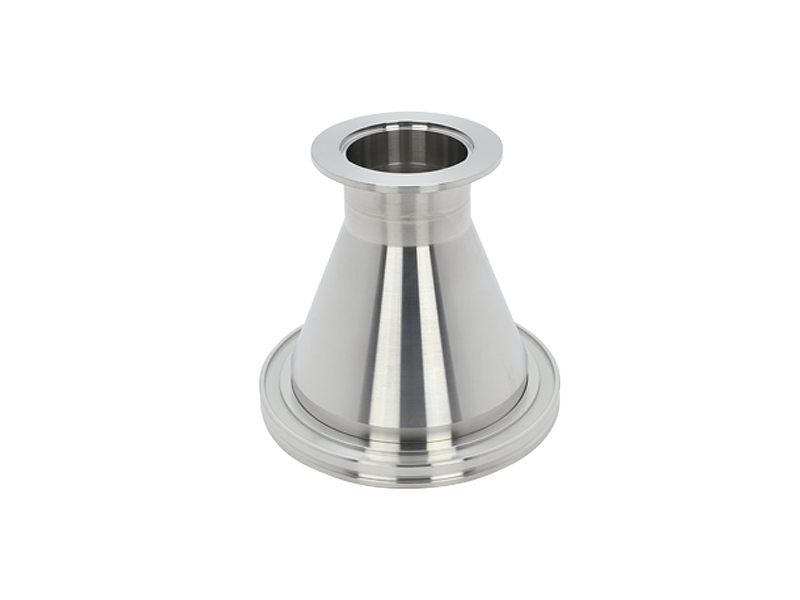

ISO-MF to ISO-KF Conical Profile Flange Adapters
Model: 100765018
ISO-MF to ISO-KF Conical Profile Flange Adapters
Model: 100765018
Overview
Overview
The 100765018 ISO-MF Flange Adapter is used to adapt a NW100 size ISO-MF flange to a size NW50 ISO-KF vacuum flange. This Series 76 adapter features a high conductance conical profile reducer and is made of 304 stainless steel.
Technical Specs
- Component TypeConical Adapter
- SeriesSeries 76
- Flange TypeISO-MF
- Flange SizeNW100
- Flange Size 2NW50 ISO-KF
- Material304 Stainless Steel
- Length4.64 in. (118 mm)
- Inner Diameter3.83 in. (97 mm)
- Inner Diameter 21.87 in. (47 mm)
- Dimension "A"4.64 in.
- Dimension "B"3.83 in.
- Dimension "C"1.87 in.
