CF UHV Flange to Female VCR Adapters
Model: 100881049
CF UHV Flange to Female VCR Adapters
Model: 100881049
Overview
Overview

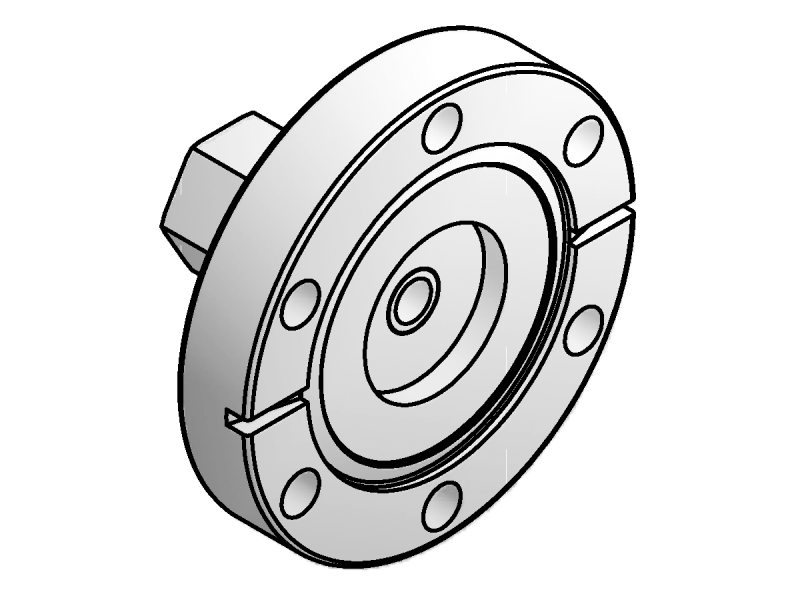

The 100881049 Flange Adapter is used to convert a 1 1/3 inch CF ultrahigh vacuum (UHV) flange to a 1/4 inch Female VCR fitting. This Series 88 CF flange adapter has thru-holes for bolting to same size CF vacuum flanges and allows VCR-compatible vacuum components to be used in a CF flange UHV piping application.
Technical Specs
- Component TypeVCR Fitting Adapter
- SeriesSeries 88
- Flange TypeCF
- Flange Size1.33 in.
- Nonrotatable FlangesOne
- Bolt HolesThru Holes
- Material304 Stainless Steel
- Length1.43 in. (36 mm)
- Inner Diameter0.19 in. (5 mm)
- VCR Fitting Size4 VCR Female

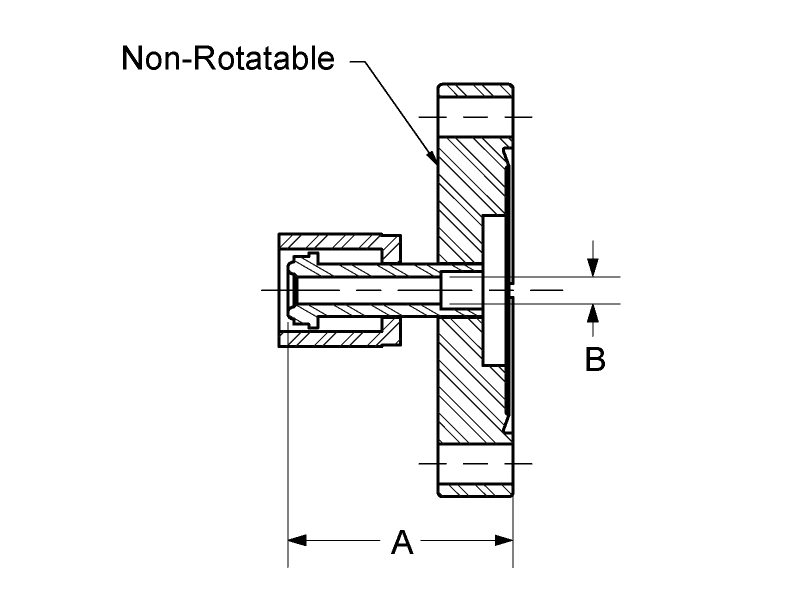

- Dimension "A"1.43 in.
- Dimension "B"0.19 in.
