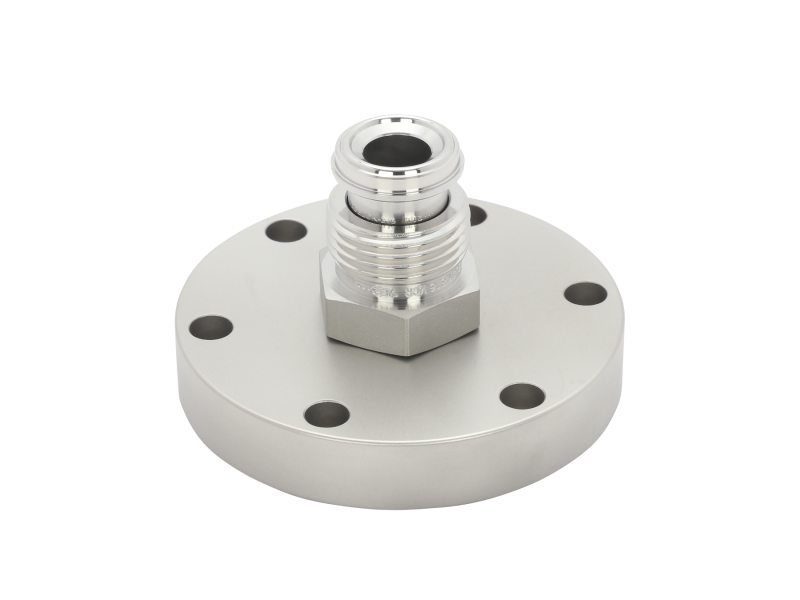

CF Flange to Male VCR Adapters
Model: 100883056
CF Flange to Male VCR Adapters
Model: 100883056
Overview
Overview
The 100883056 Flange Adapter is used to convert a 2 3/4 inch CF ultrahigh vacuum (UHV) flange to a 1/2 inch Male VCR fitting. This Series 88 CF flange adapter has thru-holes for bolting to same size CF vacuum flanges and allows VCR-compatible vacuum components to be used in a CF flange UHV piping application.
Technical Specs
- Component TypeVCR Fitting Adapter
- SeriesSeries 88
- Flange TypeCF
- Flange Size2.75 in.
- Nonrotatable FlangesOne
- Bolt HolesThru Holes
- Material304 Stainless Steel
- Length1.69 in. (43 mm)
- Inner Diameter0.41 in. (10 mm)
- VCR Fitting Size8 VCR Male
- Dimension "A"1.69 in.
- Dimension "B"0.41 in.
