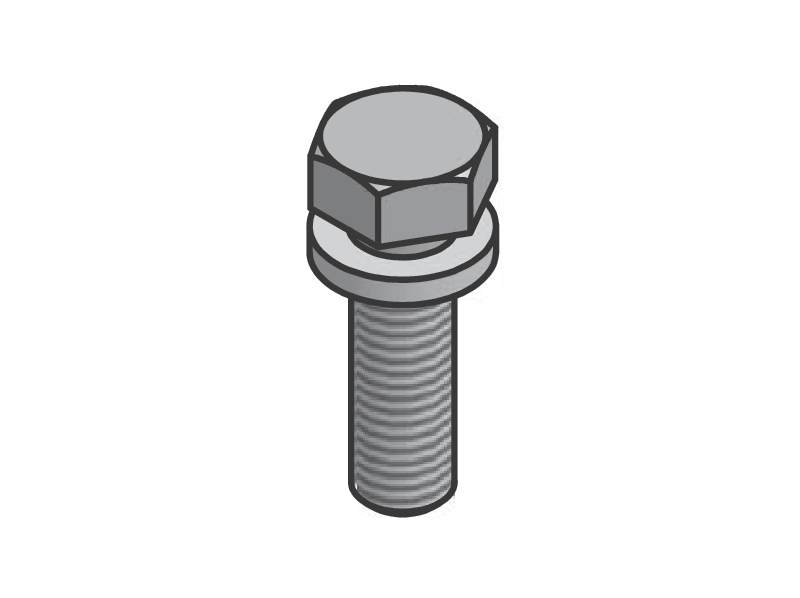

The 100889032 Tapped Flange Bolt Set is designed for joining a 1 1/3 inch tapped hole CF vacuum flange to a thru-hole CF flange. This bolt set includes (25) 8-32 flange bolts that are 0.50 inch in length and (25) 8-32 washers. Series 88 CF components are joined by inserting a gasket between the two flange faces, then securing the assembly with bolts. Bolts should be tightened diagonally, versus sequentially around the circumference, for a secure vacuum seal. Assembly is cost effective through reuse of components and inch dimensional stubs, sockets, and tubes. The foolproof design provides leak tight joints consistently.
