51C Baratron® Single-ended Absolute Pressure Switches
Model: 51C13TCA2BA200
51C Baratron® Single-ended Absolute Pressure Switches
Model: 51C13TCA2BA200
Overview
Overview

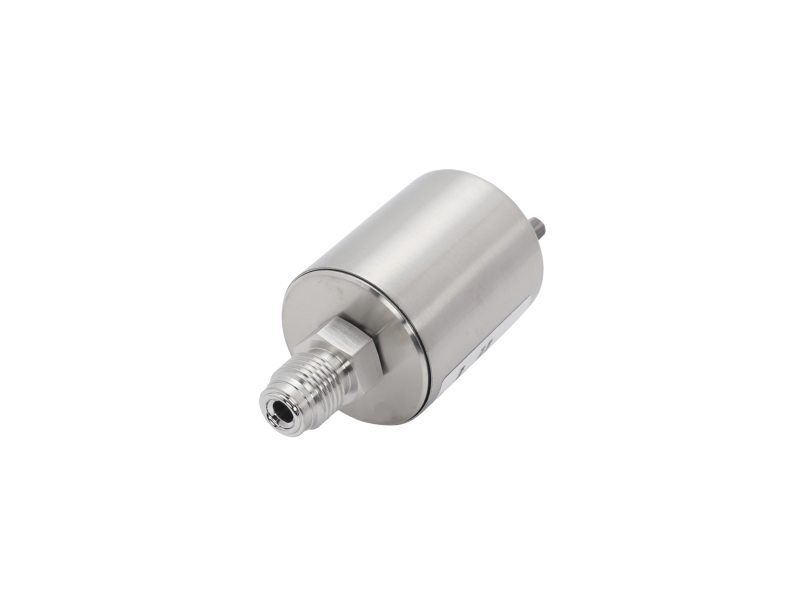

The 51C13TCA2BA200 Single-end Pressure Switch is ranged for 1000 Torr, has an 4 VCR-style fixed male fitting, 20-30 VDC input voltage, energizes with pressure below the set point, a 9-Pin Type "D" male subminiature electrical connector, and accuracy of 0.5% of Full Scale. It offers accurate and reliable protection for vacuum vacuum/pressure processes for applications where a DC signal output is not required. It is referenced to vacuum.
Technical Specs
- TypeVacuum/pressure Switch
- ConfigurationSingle-ended
- Pressure Range Full Scale1000 Torr
- Fitting Type4 VCR male
- Connector9-pin type D male
- Accuracy±0.5% of Full Scale (±temperature coefficient)
- Trip Point200 Torr
- Relay ModeEnergizes below the set point
- Trip Point Dead Band±30 Torr (nominal)
- Response Time<20 msec
- Internal Volume3.3 cc
- Temperature Coefficient±0.07% of Full Scale/°C
- Materials Exposed to Process GasesInconel and 316L S.S.
- Overpressure2 × Full Scale or 45 psia, whichever is greater
- OutputsElectromechanical relay SPDT (isolated) contacts rated up to 1 Amp @ 30 VDC resistive.
- Power Requirements20-30 VDC
- Ambient Operating Temperature0-50°C
- ComplianceCE
