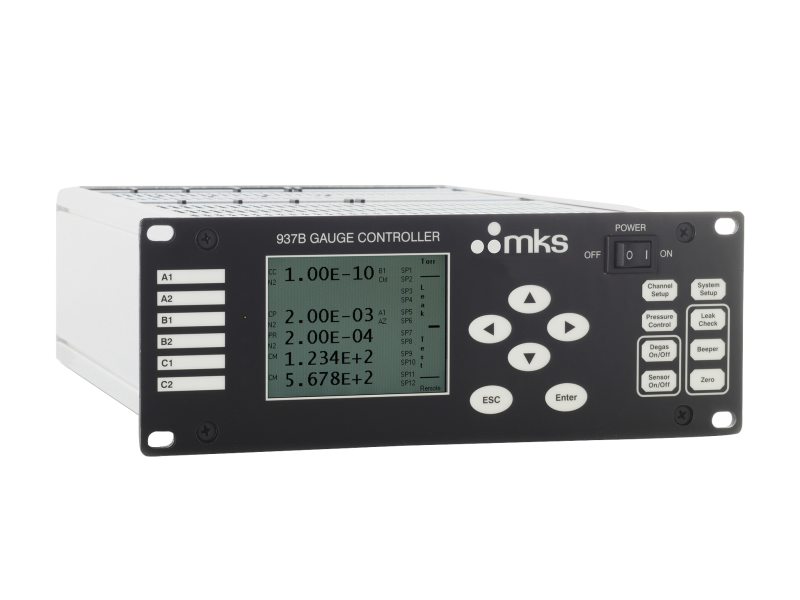

937B Digital Combination Vacuum Gauge Controller
Model: 937B-EU-NANANA-NA
937B Digital Combination Vacuum Gauge Controller
Model: 937B-EU-NANANA-NA

Overview
Overview
The 937B-EU-NANANA-NA Digital Combination Vacuum Gauge Controller is used in a vast array of vacuum and pressure measurement applications in research, industry, and high technology and is designed for the EU region. The 937B will operate and display as many as six sensors simultaneously, and each controller can be configured to the user’s gauging requirements. This highly flexible product enables a wide range of gauging technologies, tailoring the system to each individual application. The Series 937B combines the sensor technologies of the cold cathode, hot cathode, standard Pirani, convection Pirani, MKS Baratron® capacitance manometer and absolute Piezo sensors to measure from ultra-high vacuum to above atmospheric pressure. The 937B controller is designed for versatility, reliability and economy. The large, easy to read, liquid crystal display provides readout for up to six sensors simultaneously. The back lit LCD display, intuitive menus and simple push button front panel, allows for ease in setup of the 937B. The 937B, enables the use of any sensor card in each of the sensor card slots. The 937B can be configured with up to three hot or cold cathode type gauges, or three dual sensor cards for a maximum of six gauge connections.
Technical Specs
- TypeVaccum System Controller
- Display320 x 240 color QVGA TFT LCD with back lighting. Up to 6 pressure displays. Display indicators for unit of measure, calibration functions, user calibration, set points, gauge position indicators.
- Display Range1.0 x 10-11 - 20,000 Torr, 1.0 x 10-11 - 2.7 x 10+4 mbar, 1.0 x 10-9 - 2.7 x 10+6 Pascal, 1.0 x 10-8 - 2.0 x 10+7 microns
- Front Panel ControlsPower on-off switch, setup and operational commands can be accessed via the keypad
- UnitsUser Selectable
- RegionEurope
- Electrical PlugEurope 220 VAC
- Power Requirements150 watts maximum, 100 - 240 VAC 50/60 Hz
- InterfaceRS232 and RS485
- Relays12
- Set Point Contact Rating2 Amps @ 30 VAC
- Operating Temperature5 - 40° C (41 - 104°F)
- Storage Temperature-10 - 55°C (14 - 131°F)
- Relative Humidity80% max for temperatures less than 31°C, decreasing linearly to 50% maximum at 40°C
- Leak TestRelative logarithmic bar graph display and variable rate audio signal
- OutputBuffered, log linear & linear output for each channel & channel combinations
- Slot 1 BoardBlank
- Slot 2 BoardBlank
- Slot 3 BoardBlank
- Communications SlotBlank
- Insulation CoordinationOver voltage Category II, Pollution Degree 2
- Weight8 lbs (3.6 kg)
- ComplianceCE
Technical Specs
- TypeVaccum System Controller
- Display320 x 240 color QVGA TFT LCD with back lighting. Up to 6 pressure displays. Display indicators for unit of measure, calibration functions, user calibration, set points, gauge position indicators.
- Display Range1.0 x 10-11 - 20,000 Torr, 1.0 x 10-11 - 2.7 x 10+4 mbar, 1.0 x 10-9 - 2.7 x 10+6 Pascal, 1.0 x 10-8 - 2.0 x 10+7 microns
- Front Panel ControlsPower on-off switch, setup and operational commands can be accessed via the keypad
- UnitsUser Selectable
- RegionEurope
- Electrical PlugEurope 220 VAC
- Power Requirements150 watts maximum, 100 - 240 VAC 50/60 Hz
- InterfaceRS232 and RS485
- Relays12
- Set Point Contact Rating2 Amps @ 30 VAC
- Operating Temperature5 - 40° C (41 - 104°F)
- Storage Temperature-10 - 55°C (14 - 131°F)
- Relative Humidity80% max for temperatures less than 31°C, decreasing linearly to 50% maximum at 40°C
- Leak TestRelative logarithmic bar graph display and variable rate audio signal
- OutputBuffered, log linear & linear output for each channel & channel combinations
- Slot 1 BoardBlank
- Slot 2 BoardBlank
- Slot 3 BoardBlank
- Communications SlotBlank
- Insulation CoordinationOver voltage Category II, Pollution Degree 2
- Weight8 lbs (3.6 kg)
- ComplianceCE
Resources & Downloads
Literature
937B Digital Combination Vacuum Gauge Controller(585.5 kB, PDF)
Drawings & CADs
937B Vacuum Gauge Controller Dimensional Drawing(101.4 kB, PDF)
