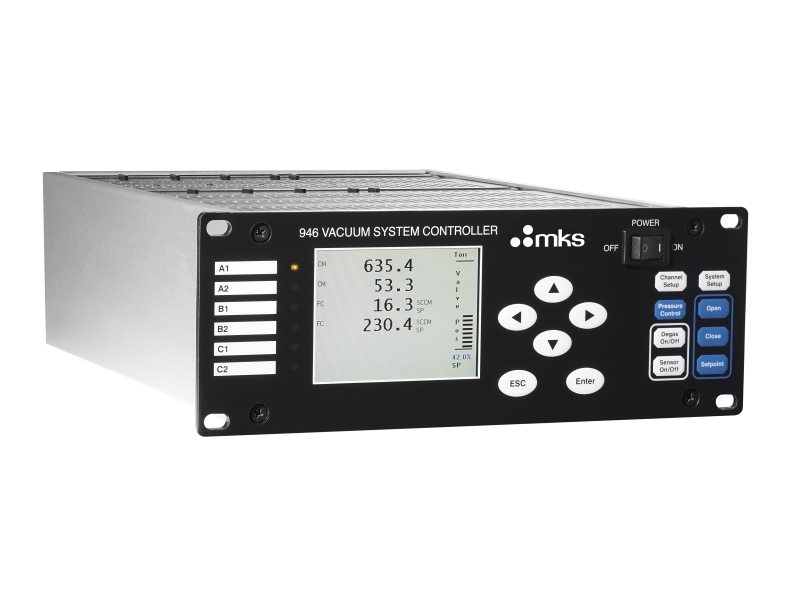

946 Vacuum System Controller
Model: 946-US-NANANA-NA
946 Vacuum System Controller
Model: 946-US-NANANA-NA
Overview
Overview
The 946-US-NANANA-NA is a versatile half-rack vacuum gauge measurement and control system. It provides power and simultaneous readout for up to six different vacuum gauges and/or mass flow controllers, with options for controlling pressure.
Technical Specs
- TypeVacuum System Controller
- Pressure Range10,000 Torr to 10-11 Torr (Dependent upon sensor type)
- Display320x240 color QVGA TFT LCD with back lighting
- UnitsPressure: Torr, mbar, Pascal Flow: sccm and slm
- Electrical PlugUnited States
- Power Requirements100 - 240 VAC 50/60 Hz 150 W maximum
- Relays12
- Set Point Contact Rating2 amps @ 30 VAC
- Operating Temperature5-40°C (41-104°F)
- Storage Temperature10-55°C (50-131°F)
- Mounting1/2 rack, 2U High, 13 inches deep
- Slot 1 BoardBlank
- Slot 2 BoardBlank
- Slot 3 BoardBlank
- Communications SlotBlank
- Weight8 lbs. (3.6 kg)
- ComplianceCE
