Cirrus™ 3 Powerful and Versatile Atmospheric Gas Analyzer
Model: CIRRUS-3
Cirrus™ 3 Powerful and Versatile Atmospheric Gas Analyzer
Model: CIRRUS-3
Overview
Overview

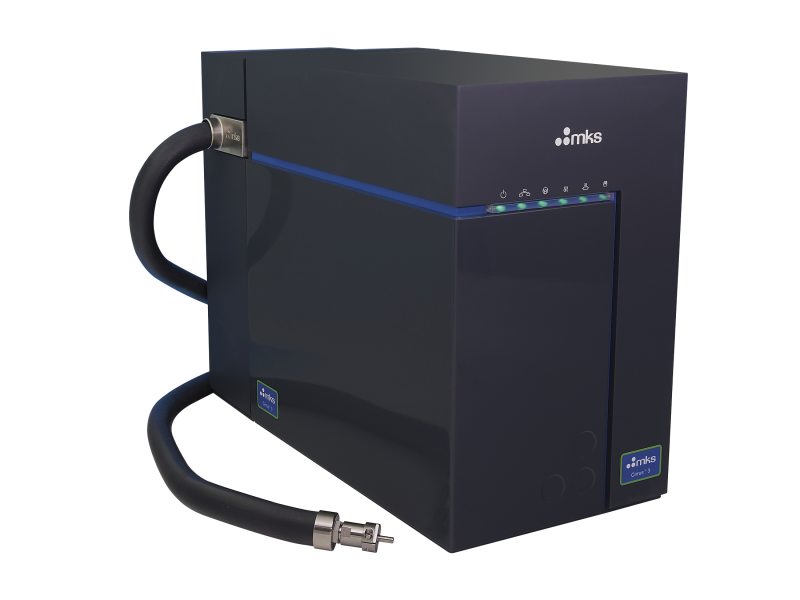

The Cirrus™3 Quadrupole Mass Spectrometry Platform provides superior analytical results in a compact, powerful, versatile platform for the lab or production facility. It is designed for researchers and engineers who require fast, sensitive, reliable monitoring of gases at atmospheric pressure. Building on proven Cirrus Quadrupole Mass Spectrometry technology, Cirrus 3 combines state-of-the-art performance in compact bench top and rack-mounted formats. With a heated capillary inlet and fast scan speed (250 points per second), gas compositions can be tracked over wide dynamic range (ppb to percentage levels), more reliably. Enhancements in capillary and oven design ensure precise temperature control and stability, allowing you to obtain high quality data with greater confidence in the results. Combined with its versatile and automatable software control, the Cirrus 3 system can be optimized and customized for a variety of applications, from industrial processes to research applications.
Technical Specs
- TypeATM-pressure Gas Monitor
- Mass Range1 - 100 amu, 1 - 200 amu, or 1 - 300 amu
- Minimum Detectable ConcentrationGas dependent, typically <100 ppb for non-interfering species
- Electron Energy & Emission CurrentOperator variable
- Maximum Operating Conditions5 - 35°C, 80% RH
- Bake Out Temperature180°C for bake out. User-definable for operation, typically 80°C
- Inlet2.0 m long with 0.25 in. Swagelok® end connection, heated to 150°C (optional heating to 300°C, with stainless steel only). Standard fused silica and optional stainless steel.
- Gas Consumption20 ml/min, lower uptake rate capillaries options are available
- Sample Pressure1 bar nominal
- Pumping SystemHigh compression turbo-molecular pump with internal 4-stage diaphragm backing pump standard, corrosive gas pumping with all internal pumps optional
- Automated Inlet Pressure ControllerA Baratron® capacitance manometer-based automated inlet pressure controller is available as an option
- PC RequirementsMicrosoft 32 bit or 64 bit Windows 7 or 10
- Interfaces1 x RJ45 Ethernet LAN port required
- I/O Capability4 analog inputs (-11 to +11 V, 22 bit), 2 analog outputs (0-10 V, 12 bit), 16 TTL digital I/O
- Power RequirementsUniversal mains input 100 - 240 VAC/50 - 60 Hz. Power supply specified at 700 W. Maximum consumption(during bakeout) typically 300 W
- ComplianceCE
- DimensionsBenchtop: 593 x 291 x 470 mm, Rack-mounted: 577 x 482 x 266mm, (6U) (length x width x height)
- WeightBenchtop: 35 kg, Rack-mounted: 35 kg
- Measurement TechniqueMass Spectrometry
- DetectorDual (Faraday and Secondary Electron Multiplier)
Technical Specs
- TypeATM-pressure Gas Monitor
- Mass Range1 - 100 amu, 1 - 200 amu, or 1 - 300 amu
- Minimum Detectable ConcentrationGas dependent, typically <100 ppb for non-interfering species
- Electron Energy & Emission CurrentOperator variable
- Maximum Operating Conditions5 - 35°C, 80% RH
- Bake Out Temperature180°C for bake out. User-definable for operation, typically 80°C
- Inlet2.0 m long with 0.25 in. Swagelok® end connection, heated to 150°C (optional heating to 300°C, with stainless steel only). Standard fused silica and optional stainless steel.
- Gas Consumption20 ml/min, lower uptake rate capillaries options are available
- Sample Pressure1 bar nominal
- Pumping SystemHigh compression turbo-molecular pump with internal 4-stage diaphragm backing pump standard, corrosive gas pumping with all internal pumps optional
- Automated Inlet Pressure ControllerA Baratron® capacitance manometer-based automated inlet pressure controller is available as an option
- PC RequirementsMicrosoft 32 bit or 64 bit Windows 7 or 10
- Interfaces1 x RJ45 Ethernet LAN port required
- I/O Capability4 analog inputs (-11 to +11 V, 22 bit), 2 analog outputs (0-10 V, 12 bit), 16 TTL digital I/O
- Power RequirementsUniversal mains input 100 - 240 VAC/50 - 60 Hz. Power supply specified at 700 W. Maximum consumption(during bakeout) typically 300 W
- ComplianceCE
- DimensionsBenchtop: 593 x 291 x 470 mm, Rack-mounted: 577 x 482 x 266mm, (6U) (length x width x height)
- WeightBenchtop: 35 kg, Rack-mounted: 35 kg
- Measurement TechniqueMass Spectrometry
- DetectorDual (Faraday and Secondary Electron Multiplier)
Resources & Downloads
Drawings & CADs
Cirrus™ 3 Dimensional Drawing(778.4 kB, PDF)
