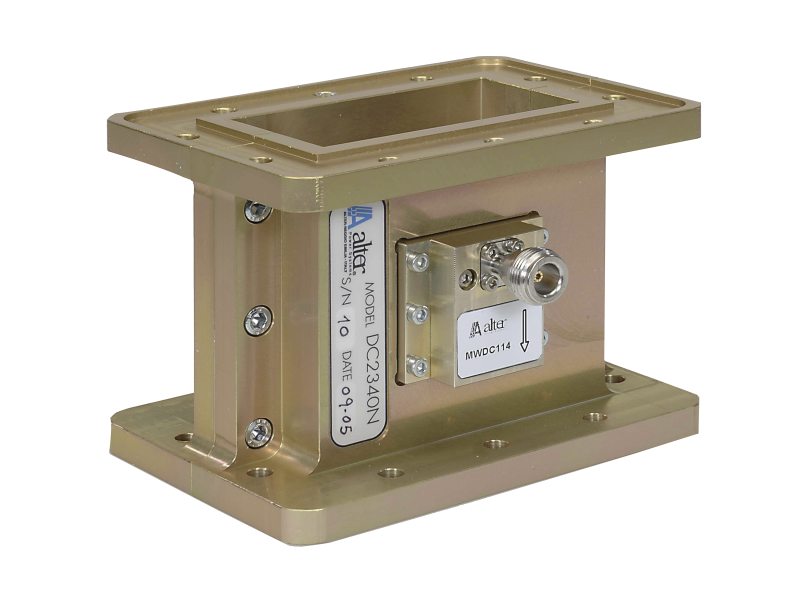

Alter® DC 2340 and DC 1340 Directional Couplers
Model: DC1340
Alter® DC 2340 and DC 1340 Directional Couplers
Model: DC1340
Overview
Overview
The DC 1340 Single Channel Directional Coupler is designed for sampling forward and reverse power in 2450 MHz industrial applications.
Technical Specs
- TypeMicrowave Directional Coupler
- VSWR1.25 max
- Directivity25 dB
- Flange TypeR 26 (IEC 153)
- Maximum Power6 kW
- Coupling Factor60 dB ±1 dB
- Output ConnectorN female (standard), SMA-F on request
- Waveguide SizeWR340
- Operating Frequency2450 MHz, ±25 MHz
- Number of Channels1
- Dimensions100 x 99 mm
- Weight0.9 kg.
