High Power Microwave Plasma Source
Model: HMPSS-MKS

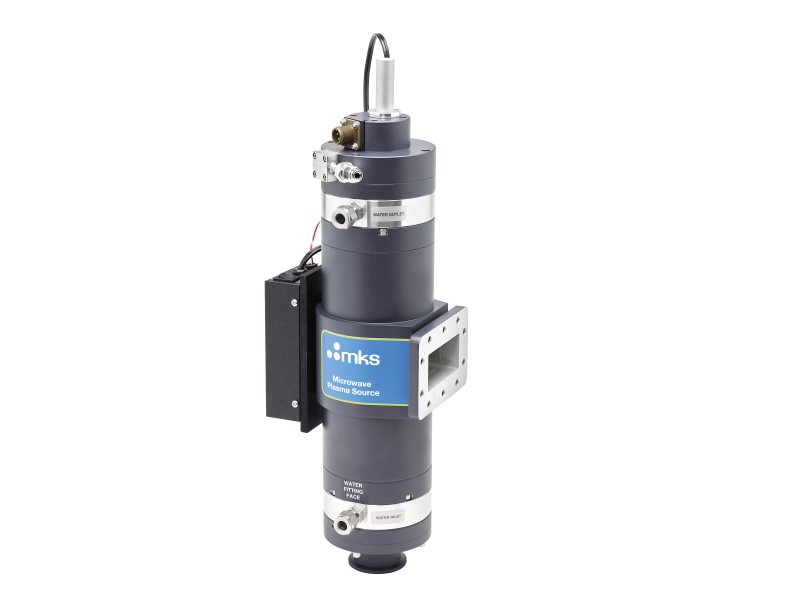

High Power Microwave Plasma Source
Model: HMPSS-MKS

Overview
Overview
The HMPSQ-MKS High Power Microwave Plasma Source has a sapphire plasma tube, and can be combined with a 6kW microwave generator for a high concentration of radicals capable of igniting in multiple process gases, over a wide operating range for applications such as, high throughput photoresist removal, advanced surface cleaning and conditioning, as well as, advanced deposition applications at the atomic level. The High Power Microwave Plasma Source can be combined with a 6kW microwave generator for a high concentration of radicals providing a high productivity manufacturing solution. The High Power Microwave Plasma source is capable of igniting in multiple process gases, over a wide operating range with performance benefits in current and emerging applications such as, high throughput photoresist removal, advanced surface cleaning and conditioning, as well as, advanced deposition applications at the atomic level. The High Power Microwave Plasma Source is ideal for use with MKS microwave plasma systems, comprised of an MKS microwave power generator, waveguide components, and the advanced SmartMatch® intelligent matching unit. Designed with a high efficiency field replaceable plasma applicator, this new microwave plasma source delivers optimal cost of ownership advantages.
Technical Specs
- TypeMicrowave Plasma Source
- Plasma Tube MaterialSapphire
- Operating Frequency2.44 -2.47 GHz
- Maximum Power6 kW
- Operating Pressure1-10 Torr
- Total Gas Flow1-10 slm
- Minimum Water Flow0.50 gpm at min 37 psid
- WaveguideWR284
- Waveguide Flange ConnectionCPR284F with bolts
- Water Inlet Connection3/8 in. Swagelok®
- Water Outlet Connection3/8 in. Swagelok®
- Electrical Requirements for UV Lamp24 VDC, 1.0 amp
- Gas Line Connection4 VCR male
- Dimensions18.52 x 4.5 x 6.32 in.
- Weight18 lbs
- ComplianceCE
Technical Specs
- TypeMicrowave Plasma Source
- Plasma Tube MaterialSapphire
- Operating Frequency2.44 -2.47 GHz
- Maximum Power6 kW
- Operating Pressure1-10 Torr
- Total Gas Flow1-10 slm
- Minimum Water Flow0.50 gpm at min 37 psid
- WaveguideWR284
- Waveguide Flange ConnectionCPR284F with bolts
- Water Inlet Connection3/8 in. Swagelok®
- Water Outlet Connection3/8 in. Swagelok®
- Electrical Requirements for UV Lamp24 VDC, 1.0 amp
- Gas Line Connection4 VCR male
- Dimensions18.52 x 4.5 x 6.32 in.
- Weight18 lbs
- ComplianceCE
Resources & Downloads
Drawings & CADs
High Power Microwave Plasma Source Dimensional Drawing(265 kB, PDF) High Power Microwave Plasma System Dimensional Drawing(792.8 kB, PDF)
