PBMS2H-pressure-standard
Model: PBMS2H-pressure-standard
PBMS2H-pressure-standard
Model: PBMS2H-pressure-standard
Technical Specs
Transfer Standard
627H Baratron® capacitance manometer absolute pressure sensor (NIST traceable)
Resolution
1 x 10-4
Fitting Type
NW16KF, 8 VCR® female
Operating Temperature
15-40°C, temperature controlled to 45°C
Readout
PR4000B Versatile 4½ place digital LCD display/power supply
Power Requirements
110 VAC, 60 Hz; 220 VAC, 50 Hz; 100 VAC, 50/60 Hz; 3A
Warm-up Time
4 hours (Use of the internal 280 VA UPS will keep the transfer standard warmed up and ready for immediate use for at least 60 minutes.)
Enclosure

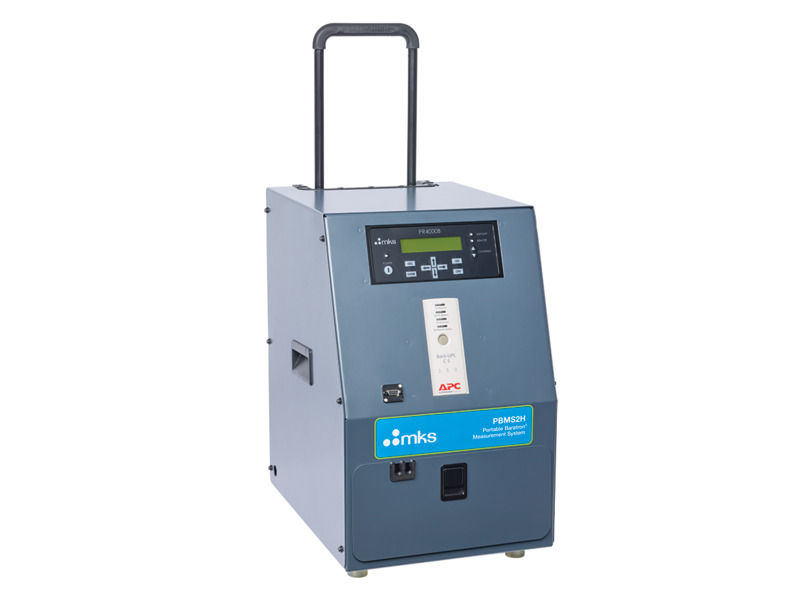

Metal wheeled cart with extendable handle and tilted front panel
Weight
75 lb. (34 Kg)
Full Scale Range
0.02, 0.05, 0.1, 1, 10, 100, 1000 Torr
Configuration
Removable transfer standard (15 ft cable)
