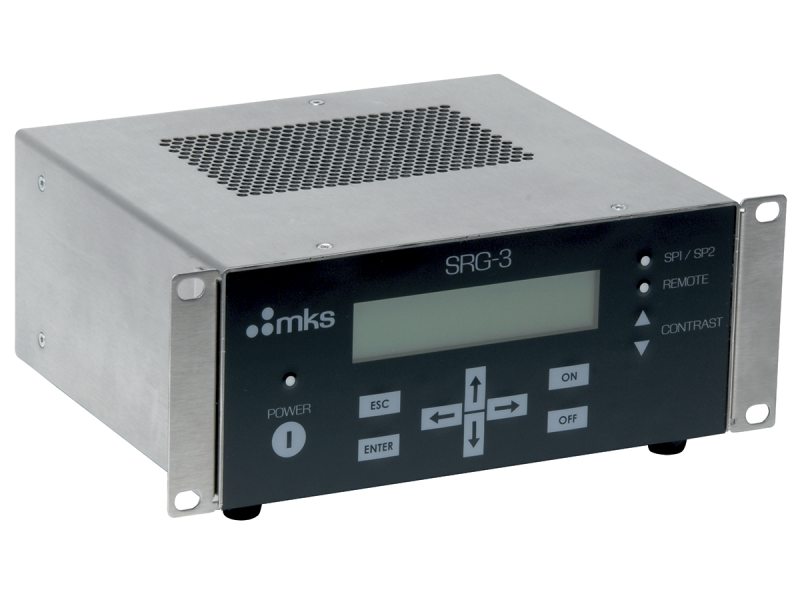

SRG-3 Spinning Rotor Vacuum Gauge Transfer Standard
Model: SRG3-EL
SRG-3 Spinning Rotor Vacuum Gauge Transfer Standard
Model: SRG3-EL
Overview
Overview
The SRG-3CE Spinning Rotor Gauge (SRG) electronics unit includes both RS232 and USB computer interfaces, as well as two (2) electromechanical trip relays and a high-resolution analog output signal.
Technical Specs
- Measurement Range5 x 10-5 to 100 Pa
- Accuracyup to 1 Pa: 1% of measuring value + U 1 to 100 Pa: increasing up to 10% of measured value (typical)
- StabilityBetter than 1% per year
- Display4½ digit LCD display
- Display UnitsPa, mbar, or Torr
- Analog Output0-10 VDC, into 2kΩ min. load, linear or logarithmic
- Relays2 SPDT relays, adjustable, nominal switching capacity (resitive load): 1A 30VDC, 0.5A 25VAC
- Digital CommunicationRS-232, USB (USB 2.0 compatible)
- Operating TemperatureElectronics: 10-40°C
- EnclosureHalf 19-inch rack mount or table top, 241 x 185 x 88 mm
- WeightElectronics: 2.5 kg
- Power Requirements85 to 256 VAC, 47-63 Hz
- ComplianceCE
