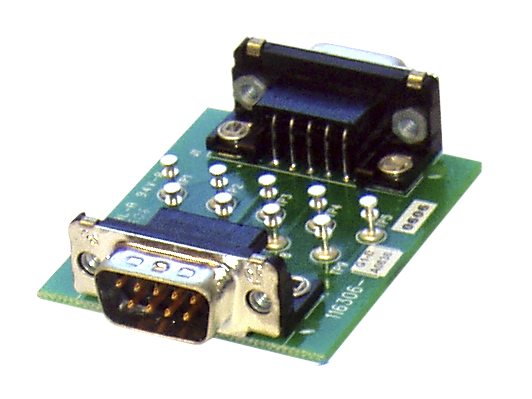

Test Diagnostic Circuit Boards
Model: TDB-9
Test Diagnostic Circuit Boards
Model: TDB-9
Overview
Overview
The TDB-9 Test Diagnostic Board with 9-pin "D" female to male connectors enables insitu monitoring of instrument input and output signals, supply power and ground quality. The TDB-9 can also be used to calibrate and zero MKS transducers and mass flow controllers.
Technical Specs
- TypeTest Diagnostic Board
- For Use WithMKS Mass Flow Controllers, Baratron Capacitance Manometers
- Connector9-pin Type D, female to male
