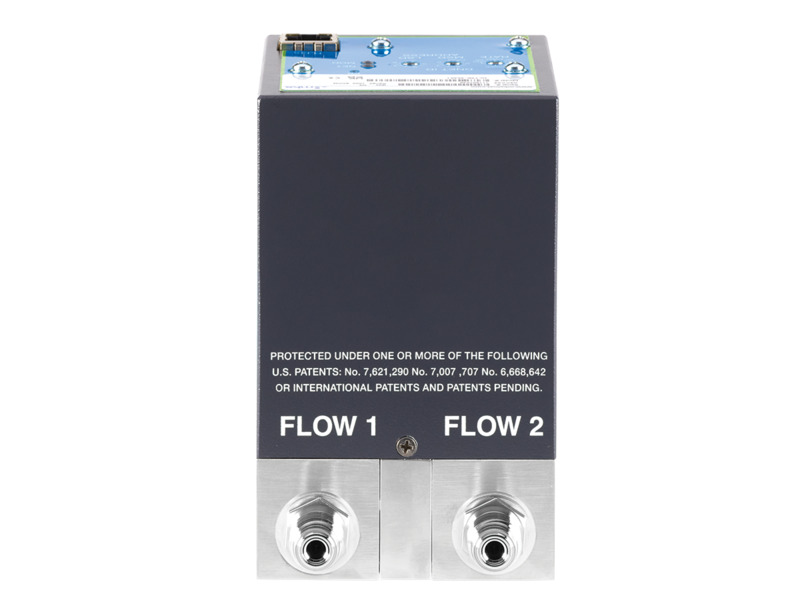

DELTA II 2-zone Flow Ratio Controller
Model: delta-ii-flow-ratio-controller
DELTA II 2-zone Flow Ratio Controller
Model: delta-ii-flow-ratio-controller
Technical Specs
Type
Flow Ratio Controller
Full Scale Flow Range
500/500 sccm, 1000/1000 sccm, 2000/2000 sccm, or 10000/10000 sccm
(N2 equivalent)
Ratio Accuracy
±2% set point (for percent set points above 10%)
Channel Flow Control Range
0, 5-100% Full Scale (EtherCAT)
Input Flow Range
5-100% of each channel Full Scale rating (N2 equivalent)
Ratio Control Range
1:1 to 20:1 and 20:1 to 1:1
Ratio Repeatability & Reproducibility
0.02% of channel Full Scale
Resolution
0.02% of channel Full Scale
Maximum Operating Outlet Pressure
EtherCAT: 200 Torr at maximum flow rate through all channels
DeviceNet & Analog: 200 Torr
Maximum Allowable Outlet Pressure Differential
EtherCAT: 50 Torr with the same percentage flow through all channels (highest to lowest pressure channel)
DeviceNet & Analog: 50 torr (between Q1 and Q2)
Normal Operating Pressure Differential
<150 torr (<450 torr for 10000/10000) (N2)
Ratio Settling Time
EtherCAT: <3 seconds (typical dependent on downstream conductance matching)
DeviceNet: <3 seconds
Input Ratio Range
1:1 to 20:1 and 20:1 to 1:1 (EtherCAT)
Ratio Repeatability
±0.3% of set point
Maximum Inlet Pressure
150 psig (non-operational) (EtherCAT)
Zero Temperature Coefficient
EtherCAT: <0.05% Full Scale/°C
DeviceNet & Analog: 0.05% Full Scale/°C
Span Temperature Coefficient
EtherCAT: <0.08% Reading/°C
DeviceNet & Analog: 0.08% Reading/°C
Proof Pressure
1000 psig (DeviceNet)
Burst Pressure
1500 psig (DeviceNet)
Warm-up Time
EtherCAT: 60 Minutes
DeviceNet & Analog: 30 minutes
Operating Temperature
10-40°C
Storage Temperature
-20-65°C
Storage Humidity
0-95% relative humidity, non-condensing
Temperature Accuracy
±2°C
Temperature Resolution
0.1°C
Fitting Type
4 VCR male (non-rotatable)
Display
4 digits for value, 4 characters for unit
External Leak Integrity
<1x10-10 (scc/sec He)
Leak Integrity Through Closed Valve
EtherCAT: < 2% of Channel Full Scale at 400 Torr differential to < 1 Torr
DeviceNet & Analog: <2% of Channel FS at 400 torr differential
Wetted Materials
316 stainless steel VAR, 316 stainless steel, Inconel®, KM-45, PTFE
EtherCAT: Hastelloy®
Surface Finish
5 microinch average Ra
Weight
Less than 5 lbs. (2.3 kg)
Connector
Analog: 9-pin Type "D" Male
DeviceNet: 5-pin DeviceNet microconnector
EtherCAT: 2 x RJ-45 (comm.) male, M8 male, 5 pin (power)
Power Requirements
Analog: +15-24 VDC ±5%
DeviceNet: 11-25 VDC
EtherCAT: 24 VDC ±10% (10 Watts)
Power Consumption
<9 Watts (DeviceNet)
Communication
Analog, DeviceNet, or EtherCAT
Compliance
CE (an overall metal braided, shielded able, properly grounded at both ends, is required during use).
