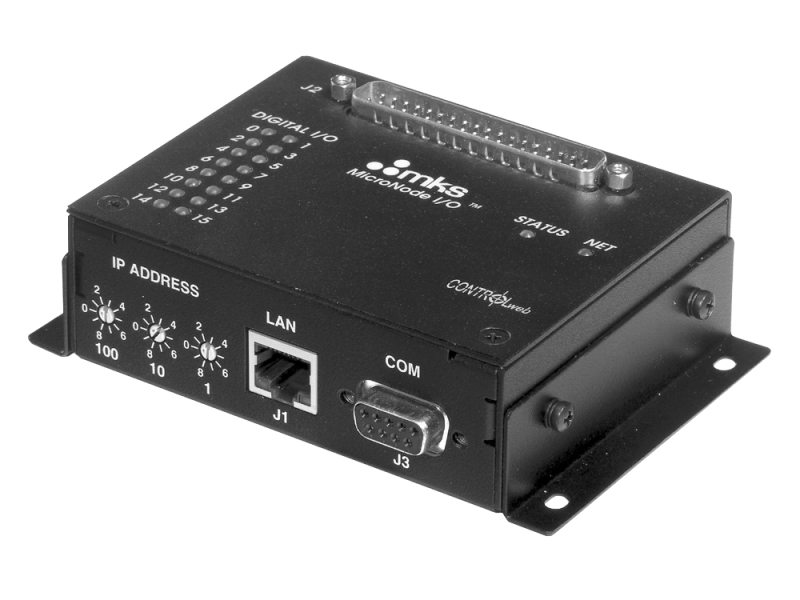

Compact Networked I/O

Minimum for Network and CPU: 24 VDC, 120 mA
AIO Power: Internal ±15 VDC; 50 mA.

DIDO: Each point either digital input or output (except for Profibus Combo)
Inputs: Optocoupler, 1.5 mA minimum, 1.5 msec filtering
Outputs: Open collector, 200mA maximum/channel
Max Output Current: 800 mA maximum on DIO 0-7, 800 mA maximum on DIO 8-15
Isolation: 500V optical isolation between CPU and digital I/O

Inputs: Single-ended analog inputs
Input Range: Software selectable (0 to 10 V), (-5 to +5 V)
Resolution: 12-bit; 16-bit (ECAT MicroNode model only)
Filtering: 16 Hz
Protection: ±15 V over-voltage protection
Non-linearity: ±3 bit (0.0732%)
Offset Error: ±10 mV (0.2%)
Gain Error: ±0.5%
Impedance: 10 kOhm minimum at 10 V

Outputs: Single-ended analog outputs
Output Range: -10 to +10V
Resolution: 12-bit; 16-bit (ECAT MicroNode model only)
Output Current: 5 mA/channel into a 2 kOhm load
Offset Error: ±2 LSB (~5 mV)
Gain Error: ±0.4%

Network, Module: DeviceNet bi-color (red/green) status LEDs
Digital I/O Points: Green status LEDs
Rotary Switches: Node Address, Baud Rate (DeviceNet only)

0 to +55°C

-40 - 85°C

5 to 95% non-condensing

0.44 lb (200 g)
0.661 lb (300 g) ECAT MicroNode model only

3.150 x 4.724 x 1.142 in. (80 x 120 x 29 mm)
4.921 x 2.066 x 3.633 in. (125 x 52.5 x 92.3 mm) ECAT MicroNode model only
