AD06A Baratron® Differential Pressure Sensor

AD06A Baratron® differential pressure sensors are single-ended dual-electrode/AC bridge devices that are extremely stable and designed to minimize the effect of temperature changes. Full Scale ranges are available from 25,000 Torr down to 0.1 Torr. Each range measures down to 1 part in 106 Full Scale with selected percent Reading accuracy limited by this resolution and with accuracies ranging from 0.25% to 0.05% of Reading. They are constructed of Inconel® and stainless steel, allowing use with many wet, dirty, or corrosive gases.

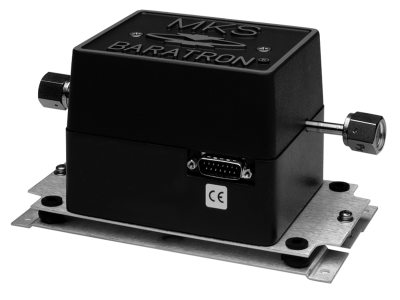

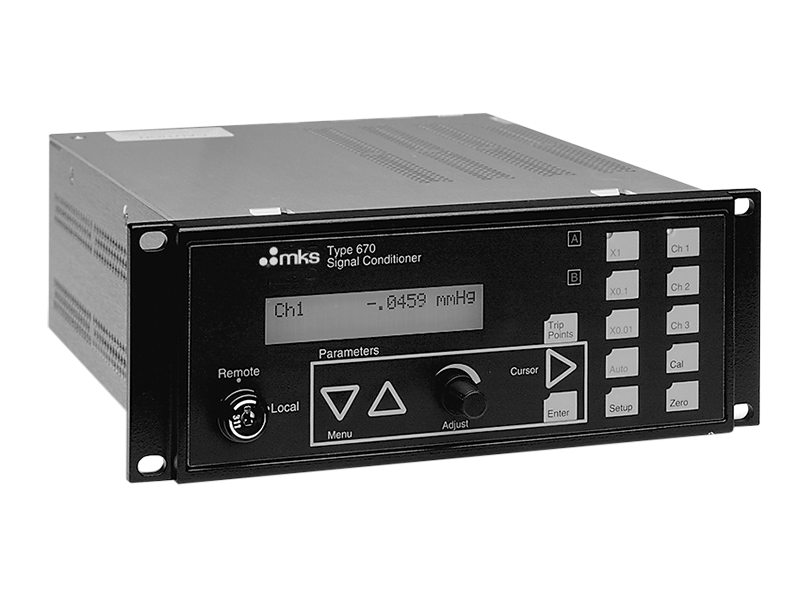

Note: The AA06A/AD06A require the use of an MKS 670C signal conditioner (Legacy 670B/270s are also compatible) to provide the various voltages to the AA06A/AD06A and to convert the sensor level signals from the AA06A/AD06A to a pressure reading.

Differential pressure measurement
Ranges from 25,000 to 0.1 Torr
Highest accuracy pressure measurement instrument available
Ideal for calibration Transfer Standards

See All Features

Show Filters:

Showing 6 of 6 total products

Description	Compatibility	Full Scale Range	Accuracy	Fitting Type	Price
AD06A01TRADifferential Reference Pressure Sensor, 1 mmHg, 0.05% Accuracy, 4 VCR-F	UNIVERSAL	1 mmHg	0.05% of Reading	4 VCR female	$5,228
AD06A01TRCDifferential Reference Pressure Sensor, 1 mmHg, 0.12% Accuracy, 4 VCR-F	UNIVERSAL	1 mmHg	0.12% of Reading	4 VCR female	$4,530
AD06A11TRADifferential Reference Pressure Sensor, 10 mmHg, 0.05% Accuracy, 4 VCR-F	UNIVERSAL	10 mmHg	0.05% of Reading	4 VCR female	$4,774
AD06A11TRCDifferential Reference Pressure Sensor, 10 mmHg, 0.12% Accuracy, 4 VCR-F	UNIVERSAL	10 mmHg	0.12% of Reading	4 VCR female	$4,530
AD06A12TRADifferential Reference Pressure Sensor, 100 mmHg, 0.05% Accuracy, 4 VCR-F	UNIVERSAL	100 mmHg	0.05% of Reading	4 VCR female	$5,228
AD06A12TRCDifferential Reference Pressure Sensor, 100 mmHg, 0.12% Accuracy, 4 VCR-F	UNIVERSAL	100 mmHg	0.12% of Reading	4 VCR female	$5,349

Configuration Options

The following options are available for AD06A Baratron® Differential Pressure Sensors
Ordering Code Example: AD06A11TRC

Configuration Option	Option Code
AD06A Baratron® Differential Pressure Sensor	AD06A
Pressure Range (mmHg)
0.1 mmHg	.1T
1 mmHg	01T
10 mmHg	11T
100 mmHg	12T
1000 mmHg	13T
Fittings (compatible with)
4 VCR female	R
Accuracy
±0.12% of Reading (Unidirectional Calibration)	C
±0.08% of Reading (Unidirectional Calibration)	B
±0.05% of Reading (Unidirectional Calibration, 1-1000 mmHg ranges only)	A
±0.25% of Reading (Bidirectional Calibration, 1-1000 mmHg ranges only)	E
±0.15% of Reading (Bidirectional Calibration, 1-1000 mmHg ranges only)	D

	Description
	AD06A Differential Capacitance Manometer, High Accuracy, 0.1-1000 Torr, 4 VCR-F

Specifications

Measurement Type
Differential
Full Scale Pressure Ranges
0.1, 1, 10, 100, or 1000 mmHg Full Scale
Fitting Type
4 VCR female
Accuracy
0.05%, 0.08%, 0.12% or 0.25% of Reading ±zero/span coefficient
Resolution
1 part in 10⁶ Full Scale
Operating Temperature
Temperature regulated at 45°C

Overpressure Limit
40 or 45 psid
Maximum Line Pressure
150 psig
Materials Exposed to Process Gases
Px: Inconel, Stainless Steel
Pr: Inconel, Stainless Steel, Alumina, Palladium Glass
Volume
Px: 3.5 cc; Pr: 25 cc
Compliance
CE

Accessories

Description	Compatibility	Price
¹	UNIVERSAL		Learn More
670CD21Electronics/Display, RS232	UNIVERSAL	$5,169
RCB270S-2-10Manometer Cable, 670 Display to 690, 698, AA06A, AD06A Manometers, 10 ft., RoHS, Shielded	UNIVERSAL	$473
RCB270S-2-20Manometer Cable, 670 Display to 690, 698, AA06A, AD06A Manometers, 20 ft., RoHS, Shielded	UNIVERSAL	$506
