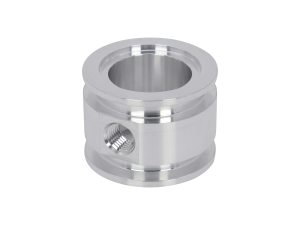

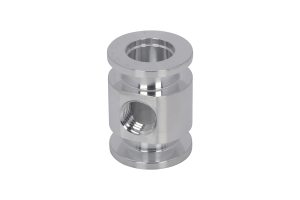

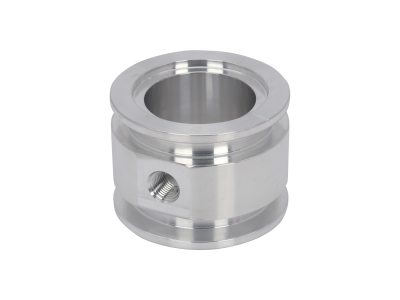

Aluminum ISO-KF to NPT-F Pipe Adapter Tees
Aluminum ISO-KF to NPT-F Pipe Adapter Tees
Aluminum NPT-F pipe adapter tees have NW16 to NW50 size ISO-KF flanges on the thru ports with a 0.25 or 0.5 inch NPT tapped hole for branching.
- Branch NPT-F pipe from and ISO-KF flange
- NW16 to NW50 thru ports
- Aluminum construction See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 100319301ISO-KF Flange Adapter Tee, NW16 Flange to 0.125 in. Female NPT, Aluminum | |||||
 | 100319303ISO-KF Flange Adapter Tee, NW25 Flange to 0.125 in. Female NPT, Aluminum | |||||
 | 100319305ISO-KF Flange Adapter Tee, NW40 Flange to 0.125 in. Female NPT, Aluminum | |||||
| 100319306ISO-KF Flange Adapter Tee, NW50 Flange to 0.125 in. Female NPT, Aluminum | |||||
 | 100319501ISO-KF Flange Adapter Tee, NW16 Flange to 0.25 in. Female NPT, Aluminum | |||||
 | 100319503ISO-KF Flange Adapter Tee, NW25 Flange to 0.25 in. Female NPT, Aluminum | |||||
 | 100319505ISO-KF Flange Adapter Tee, NW40 Flange to 0.25 in. Female NPT, Aluminum | |||||
| 100319506ISO-KF Flange Adapter Tee, NW50 Flange to 0.25 in. Female NPT, Aluminum |
Notes:

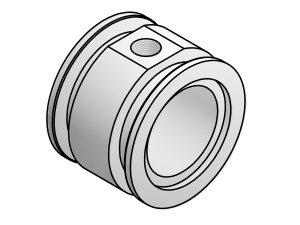

Please see flange adapter schematic for dimension callouts.
Specifications
- Component TypeFemale NPT Pipe Adapter Tee
- SeriesSeries 31
- MaterialAluminum
- Flange TypeISO-KF
- Length1.57 in. (40 mm)
Resources
Literature
Series 31 ISO-KF Vacuum Components & Fittings(1.1 MB, PDF)
