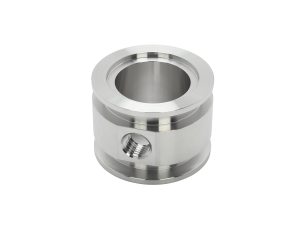

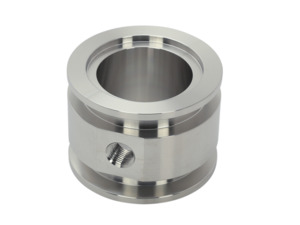

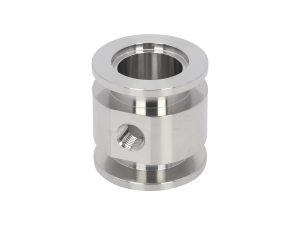

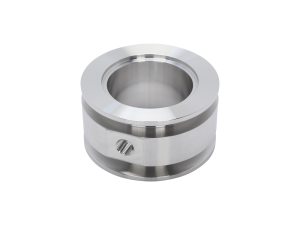

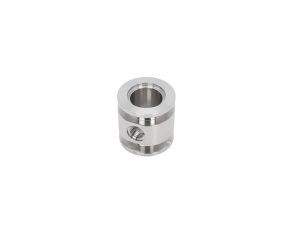

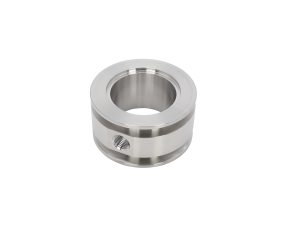

Stainless Steel ISO-KF to NPT-F Pipe Adapter Tees
Stainless Steel ISO-KF to NPT-F Pipe Adapter Tees
Stainless Steel NPT-F pipe adapter tees have NW16 to NW50 size ISO-KF flanges on the thru ports with a 0.25 or 0.5 inch NPT tapped hole for branching.
- Branch NPT-F pipe from and ISO-KF flange
- NW16 to NW50 thru ports
- 304 Stainless Steel construction See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 100319401ISO-KF Flange Adapter Tee, NW16 Flange to 0.125 in. Female NPT, S.S. | |||||
 | 100319403ISO-KF Flange Adapter Tee, NW25 Flange to 0.125 in. Female NPT, S.S. | |||||
 | 100319405ISO-KF Flange Adapter Tee, NW40 Flange to 0.125 in. Female NPT, S.S. | |||||
 | 100319406ISO-KF Flange Adapter Tee, NW50 Flange to 0.125 in. Female NPT, S.S. | |||||
 | 100319601ISO-KF Flange Adapter Tee, NW16 Flange to 0.25 in. Female NPT, S.S. | |||||
 | 100319603ISO-KF Flange Adapter Tee, NW25 Flange to 0.25 in. Female NPT, S.S. | |||||
 | 100319605ISO-KF Flange Adapter Tee, NW40 Flange to 0.25 in. Female NPT, S.S. | |||||
 | 100319606ISO-KF Flange Adapter Tee, NW50 Flange to 0.25 in. Female NPT, S.S. |
Specifications
- Component TypeFemale NPT Pipe Adapter Tee
- SeriesSeries 31
- MaterialStainless Steel
- Flange TypeISO-KF
- Length1.57 inch (40 mm)
Resources
Literature
Series 31 ISO-KF Vacuum Components & Fittings(1.1 MB, PDF)
