Stainless Steel ISO-KF to NPT-F Pipe Adapters

Stainless Steel ISO-KF to NPT-F Pipe Adapters

Stainless Steel ISO-KF to NPT-F Pipe Adapters

Stainless Steel NPT-F pipe adapters are used to convert NW10 to NW50 size ISO-KF vacuum flanges to a female thread NPT pipe connection.

Adapt ISO-KF flanges to NPT-F pipe
NW10 to NW50 flange sizes
304 Stainless Steel construction

See All Features

Show Filters:

Showing 10 of 10 total products

	Compare	Description	Compatibility	Drawings, CAD & Specs	Flange Size	NPT Fitting Size	Outer Diameter	Length	Avail.	Price
		100312100ISO-KF Flange Adapter, NW10 Flange to 0.125 in. Female NPT, 304 S.S.	UNIVERSAL		NW10	0.125 in. Female	0.62 in. (16 mm)	0.75 in. (19.05 mm)		$30

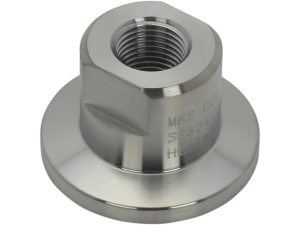

		100312101ISO-KF Flange Adapter, NW16 Flange to 0.125 in. Female NPT, 304 S.S.	UNIVERSAL		NW16	0.125 in. Female	0.62 in. (16 mm)	0.75 in. (19.05 mm)		$23.51

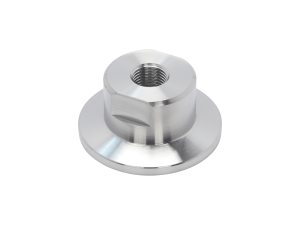

		100312103ISO-KF Flange Adapter, NW25 Flange to 0.125 in. Female NPT, 304 S.S.	UNIVERSAL		NW25	0.125 in. Female	0.88 in. (22 mm)	0.75 in. (19.05 mm)		$30

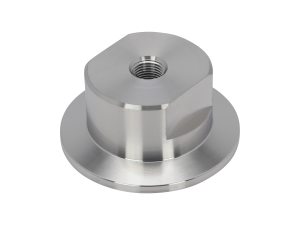

		100312105ISO-KF Flange Adapter, NW40 Flange to 0.125 in. Female NPT, 304 S.S.	UNIVERSAL		NW40	0.125 in. Female	1.25 in. (32 mm)	1.0 inches (25.4 mm)		$105
		100312106ISO-KF Flange Adapter, NW50 Flange to 0.125 in. Female NPT, 304 S.S.	UNIVERSAL		NW50	0.125 in. Female	1.75 in. (44 mm)	1.0 inches (25.4 mm)		$86

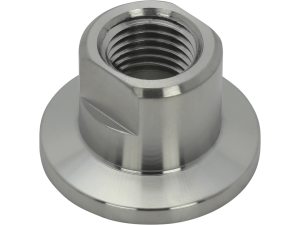

		100312300ISO-KF Flange Adapter, NW10 Flange to 0.25 in. Female NPT, 304 S.S.	UNIVERSAL		NW10	0.25 in. Female	0.62 in. (16 mm)	0.75 in. (19.05 mm)		$33

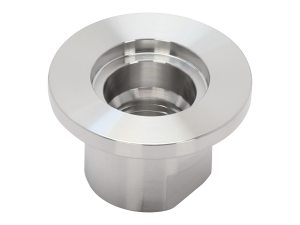

		100312301ISO-KF Flange Adapter, NW16 Flange to 0.25 in. Female NPT, 304 S.S.	UNIVERSAL		NW16	0.25 in. Female	0.62 in. (16 mm)	0.75 in. (19.05 mm)		$24.90

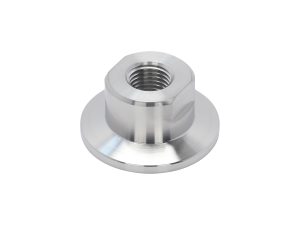

		100312303ISO-KF Flange Adapter, NW25 Flange to 0.25 in. Female NPT, 304 S.S.	UNIVERSAL		NW25	0.25 in. Female	0.88 in. (22 mm)	0.75 in. (19.05 mm)		$34
		100312305ISO-KF Flange Adapter, NW40 Flange to 0.25 in. Female NPT, 304 S.S.	UNIVERSAL		NW40	0.25 in. Female	1.25 in. (32 mm)	1.0 in. (25.4 mm)		$44
		100312306ISO-KF Flange Adapter, NW50 Flange to 0.25 in. Female NPT, 304 S.S.	UNIVERSAL		NW50	0.25 in. Female	1.75 in. (44 mm)	1.0 in. (25.4 mm)		$57

Notes:

Please see flange adapter schematic for dimension callouts.

Specifications

Component Type
Female NPT Pipe Adapter
Series
Series 31

Material
Stainless Steel
Flange Type
ISO-KF

Resources

Literature

Series 31 ISO-KF Vacuum Components & Fittings(1.1 MB, PDF)
