Vision 2000-C™ XD & Vision 2000-E™ XD High Sensitivity RGAs for Multi-pressure & CVD/ALD Processes

The Vision 2000-C™ XD and Vision 2000-E™ XD systems allow seamless monitoring of a wide range of semiconductor applications, including the complete ALD, CVD, and Etch processes, from base vacuum to process pressures up to 700 Torr. Both systems incorporate patented V-lens™ technology, taking the proven performance of the Vision 2000-C and Vision 2000-E systems to a new level of sensitivity and reliability, previously unachievable with conventional quadrupole mass spectrometry systems (QMS).

In situ monitoring during chamber clean, passivation and deposition
Up to 10 times increased sensitivity at lower masses (<15ppb)
Reliable distinction between gases and background
UniBloc™ fast-response inlet valve for sampling at background and process pressures
Integration with a wide range of ALD, CVD, and Etch tools

See All Features

	Compare	Description	Compatibility	Drawings, CAD & Specs	Mass Range	Minimum Detectable Concentration	Mass Stability	Type	Analyzer Housing Base Pressure	Avail.	Price
		VISION-2000-C-XDCVD or Etch Process Monitor, High Sensitivity, 1-300 amu, Multi-pressure	UNIVERSAL		1 - 300 amu	<15 ppb specified with Argon or Nitrogen	Better than ±0.1 amu over 8 hours	Residual Gas Analyzer	Better than 5e^-9 Torr after bakeout
		VISION-2000-E-XDCVD or Etch Process Monitor, High Sensitivity, 1-200 amu, Multi-pressure	UNIVERSAL		1 - 200 amu	<15 ppb specified with Argon or Nitrogen	Better than ±0.1 amu over 8 hours	Residual Gas Analyzer	Better than 5e^-9 Torr after bakeout

Specifications

Mass Range
1-300 amu
Ion Source
High conductance closed ion source
Filaments
Independently replaceable twin Tungsten filaments
Mass Filter
Double filter (1-inch "RF only" pre-filter with 4-inch main filter)
Detector
Dual (Faraday and secondary electron multiplier)
Maximum Analyzer Operating Pressure
1e-3 Torr at the ion source inlet (standard), higher pressure optional
Minimum Detectable Partial Pressure
<2e-11 Torr (for total pressures <1e-4 Torr on baseline inlet)
Minimum Detectable Concentration
<15ppb specified with Argon or Nitrogen
Mass Stability
Better than ±0.1 amu over 8 hours
Resolution
Better than 10% valley between peaks of equal height throughout the mass range
Base Pressure Range
Ion source at maximum pressure at 1 mTorr, 10 mTorr or 100 mTorr
Process Pressure Range
Ion source at maximum pressure at 10 mTorr, 100 mTorr, 500 mTorr, 1.5 Torr, 5 Torr, 10 Torr, 40 Torr, 100 Torr or 700 Torr
Mounting Flange
DN35CF (70mm/2.75 inches OD) Conflat® flange
Vacuum Hardware
60 l/s turbomolecular pump with high conductance analyzer housing, inlet system, UniBloc™ inlet, automated vacuum control (RVC) completely interlocked and integrated
Backing Vacuum System
Standard: Connected to the tool foreline pump via Surge Protect assembly with a KF16 fitting
Optional: Independent chemically resistant, dry diaphragm pump with KF16 fitting for connecting the exhaust to a suitable scrubber system
Bakeout Temperature and Bakeout Jacket
Included for 180°C bakeout

Operating Temperature
Electronics: 10-40°C
Weight
Control Module: 1.7 kg
Mechanical Support
Optional stands and brackets are available
Mobile RGA Platform
Optional RGA trolley to improve versatility (footprint 18x24 inches, 455x604mm)
Pneumatics
60-80 psig CDA
Power Requirements
88-264 VAC, 47/63 Hz, 600 Watts
Maximum Operating Conditions
80% RH (non condensing)
LED Status Indication
Interlock status, filament emission, SEM, power and communications
I/O Capability
4 analog inputs and 2 outputs (plus 1 dedicated gauge input). Optional support for a large number of both analog and digital inputs and outputs, including relay control
Other Facilities
Leak check headset socket, external filament trip socket, instrument reset
Software
Process Eye® Professional fully network compatible control platform generating under 32bit or 64bit Microsoft® Windows® xP, Vista, Server 2008 or Windows 7* (*recommended)
Communication
Ethernet CAT-5e
PC Requirements
Intel® Pentium IV® or AMD Athlon xP 1.2GHz, 1GB RAM, 120 GB hard drive, dependent upon total number of sensors on the computer and the operating system in use. Multi-sensor installation may require higher specifications.
Simultaneous Multi-Sensor
Process Eye Professional client/server configuration offers flexible multi-sensor operation.
Shipping Weight
44 lbs (20 Kg)
Compliance
Compliant to RoHS Directive 2002/95/EC (control unit)

Features

V-lens™ Technology

Degas processes typically employ inert gases such as Argon or Nitrogen. The use of these gases can be challenging as they generate an elevated baseline in RGAs due to large amounts of chemical background noise caused by metastable decay. This results in reduced sensitivity which can be problematic for manufacturers who want to identify changes in trace gases (which are indicative of issues during the manufacturing process) quickly and easily.

V-lens technology, a unique enabling solution, helps to overcome this issue by providing a consistently low mass independent baseline and detection levels in the low ppb range. This is achieved with unique ion optics that utilize a patented double-focusing and deflection mechanism that significantly reduces background and enhances sensitivity (see figure).

The result is a gas analyzer with limits of detection in the low ppb range without compromise to any other aspect of instrument performance.

This state-of-the-art RGA technology is integrated with Process Eye Professional control platform, a recipe based, user-configurable software program. The combination of V-lens, a closed ion source, and automated inlet allows for sensitive and reproducible monitoring of the complete ALD, CVD, or Etch process cycle.

By maximizing the ratio between ALD, CVD, or Etch chamber gas signals and the gas background in the differentially pumped analyzer housing, the V-lens and closed ion source enables low ppm-level detection for trace contaminants in the process gas.

V-lens Ion Optics Technology - Trajectories of negative ions (green), positive ions (red), neutral ions (blue) in the V-lens ion optics, reducing metastable decay

Data acquired from purified Argon at atmospheric pressure without V-lens technology

Reduced baseline and improved sensitivity typically observed when using a QMS with V-lens technology

Closed Ion Source

The closed ion source analyzer is manufactured from vacuum prepared stainless steel and high density alumina ceramics, and features independently replaceable twin filaments to provide built-in backup in the event of a filament failure. The standard system includes a double filter analyzer for increased sensitivity of higher mass species, contamination resistance and enhanced long-term stability.

Remote Vacuum Controller

Each Vision 2000-C XD and Vision 2000-E XD system incorporates a Remote Vacuum Controller (RVC) module that provides fail-safe protection for both the process tool and the RGA. It allows full operation and control of RGA system components (filaments, pumps, inlet valves, bake-out, etc.) from the system PC.

UniBloc™ Inlet Valve

The fast-response UniBloc inlet valve allows sampling at both background and process pressure. When not sampling, both the valve and analyzer are automatically isolated from the process chamber and purged with inert gas. Purging is via the mass spectrometer pumping system, not through the process chamber. Purging is also used during bakeout, reducing initial startup time and residual background recovery time.

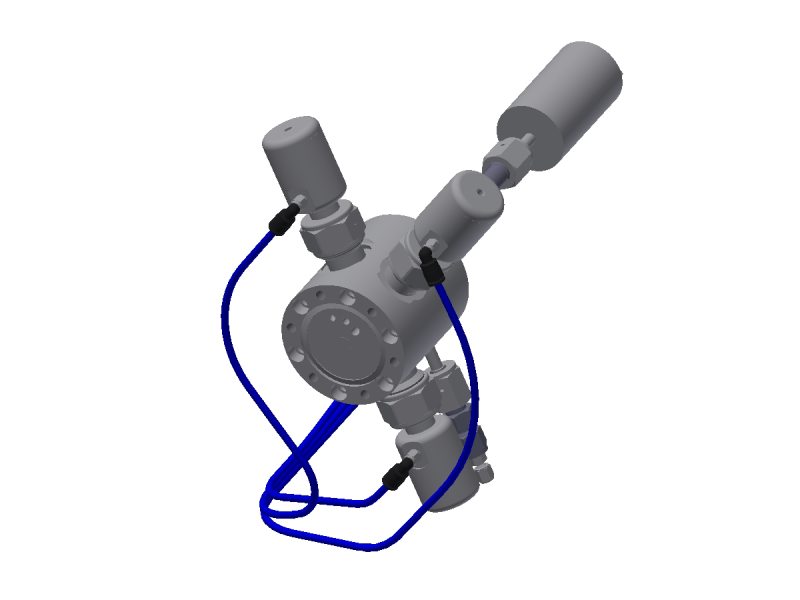

For sampling up to 10 Torr, a special 4-valve UniBloc is available for bypass pumping to facilitate the faster transfer of sample gas to the inlet, thereby optimizing inlet response time. Above 10 Torr, the 4-valve configuration is always used. The inlet valve is operated by integrated electronics and controlled via recipes from Process Eye Professional. The required valve selection is made automatically by a gas independent pressure sensor in the UniBloc inlet that also provides a read out of the process chamber total pressure. The internal seals are Kel-F® for compatibility with ALD, CVD, and Etch process gases. The external seals are all metal.

UniBloc Inlet Valve

Process Eye™ Professional Control Platform

The Vision 2000-C XD and Vision 2000-E XD analyzers use Process Eye Professional. This highly flexible, modular application uses recipes to specify how the instrument scans, displays data, and responds to the acquired data. Recipes, user configurable using the “Recipe Wizard,” allow customized warnings and alarm levels, triggered whenever the process exceeds preset levels.

Other key parameters can also be set via the recipe. This allows optimization for each stage of the process. Process Eye Professional provides:

Automated and intelligent operation of MKS RGAs
Recipes for automated calibration
Flexible scanning — “Bar Chart”, “Analog”, and “Peak Jump” modes can be associated with data trend displays
Intelligent, user defined warnings and alarms include a suggested diagnosis of the fault condition and a recommendation for its solution
Optional ability to read data from other sensors using analog inputs and external events by digital inputs
Data buffer for quick on-line review of recent data
Full storage of all data for review and analysis

TOOLweb® RGA

Using the TOOLweb RGA sensor integration option for process tools, the Vision 2000-C XD and Vision 2000-E XD can be used as a degas chamber sensor in a completely automated process environment (Figure 4). TOOLweb RGA maintains a constant monitoring of tool activities with all sensor data being framed by wafer logistics before alarm models are applied. Full alarm and data reporting to the FAB host and FDC are available allowing real-time monitoring of chamber conditions and flagging of any process excursions from ideal conditions.

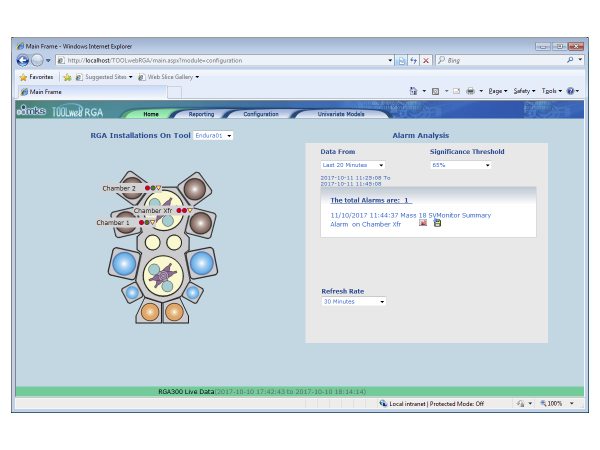

TOOLweb RGA homepage screen for a tool with Vision 2000 XD degas modules
