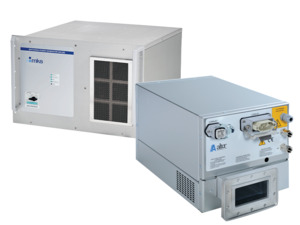

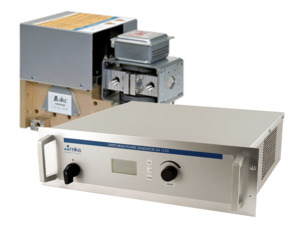

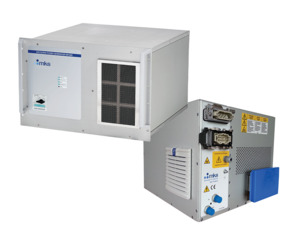

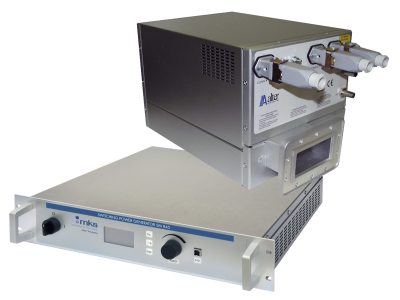

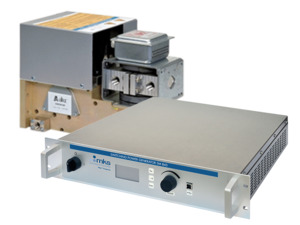

GS Series 2450 MHz Industrial Microwave Generators

MKS Alter® GS Series Microwave Generators are built on experience and designed with rugged and reliable switch mode power supplies for demanding industrial applications. The GS Series offers compact generators up to 15 kW in a 19 inch standard rack with a remote head and dedicated cables set.
For power up to 3 kW the isolator is integrated in the microwave head. For 6, 10 and 15 kW microwave generators, an external isolator is included. All MKS Alter microwave generators are equipped with reflected power detection.

Large choice of input line voltage
Power output range of 200 W - 15 kW
Configurable remote control: RS232, PLC, Fieldbus interface

See All Features

Show Filters:

Showing 10 of 10 total products

Description	Compatibility	Frequency	Maximum Power Output
GS02020Microwave Generator, 2 kW, 2450 MHz, 230 VAC Input	UNIVERSAL	2450 MHz	200-2000 W
GS03020Microwave Generator, 3 kW, 2450 MHz, 3 x 208 VAC Input	UNIVERSAL	2450 MHz	300-3000 W
GS03040Microwave Generator, 3 kW, 2450 MHz, 3 x 400 VAC Input	UNIVERSAL	2450 MHz	300-3000 W
GS06520Microwave Generator, 6 kW, 2450 MHz, 3 x 208 VAC Input	UNIVERSAL	2450 MHz	600-6000 W
GS06540Microwave Generator, 6 kW, 2450 MHz, 3 x 400 VAC Input	UNIVERSAL	2450 MHz	600-6000 W
GS06548Microwave Generator, 6 kW, 2450 MHz, 3 x 480 VAC Input	UNIVERSAL	2450 MHz	600-6000 W
GS10040Microwave Generator, 10 kW, 2450 MHz, 3 x 400 VAC Input	UNIVERSAL	2450 MHz	1-10 kW
GS10048Microwave Generator, 10 kW, 2450 MHz, 3 x 480 VAC Input	UNIVERSAL	2450 MHz	1-10 kW
GS15040Microwave Generator, 15 kW, 2450 MHz, 3 x 400 VAC Input	UNIVERSAL	2450 MHz	1-15 kW
GS15048Microwave Generator, 15 kW, 2450 MHz, 3 x 480 VAC Input	UNIVERSAL	2450 MHz	1-15 kW

Specifications

Type
Industrial Microwave Generator
Frequency
2440 - 2470 MHz
Power Regulation
10-100%
Line Load Regulation
1-10%
Ripple
Max 3 to ± 5% of output power

Ambient Temperature
Up to 40°C maximum
Microwave Connections
WR340 waveguide with PDR26 flange
WR430 waveguide with PDR22 flange
Remote Control
Available with PLC, RS232, or ANYBUS
Compliance
CE

Resources

Literature

GS Series 2450 MHz Industrial Microwave Generators(2.3 MB, PDF)

GS Series 2450 MHz Industrial Microwave Generators

GS Series 2450 MHz Industrial Microwave Generators

Specifications

Resources

Literature

Related Products

Alter® SM 845 Air-cooled Switch Mode Microwave Power Supply for 2kW, 2.45 GHz Magnetrons

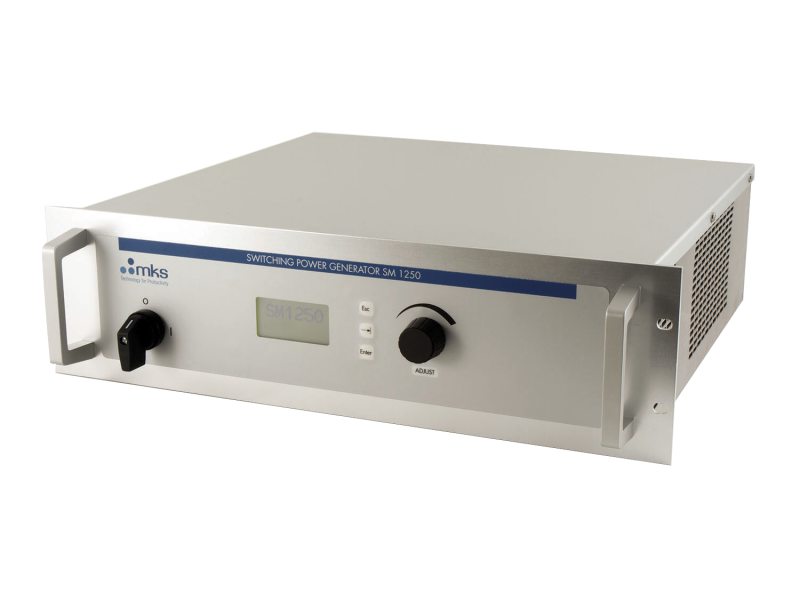

Alter® SM 1250 Air-cooled Switch Mode Microwave Power Supply for 3kW, 2.45 GHz Magnetrons

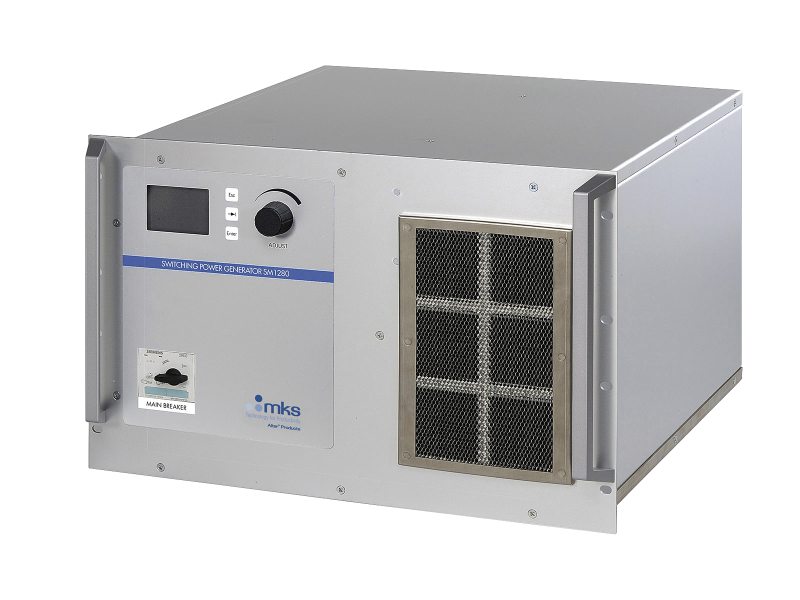

Alter® SM 1280 Air-cooled Switch Mode Microwave Power Supply for 6kW, 2.45 GHz Magnetrons

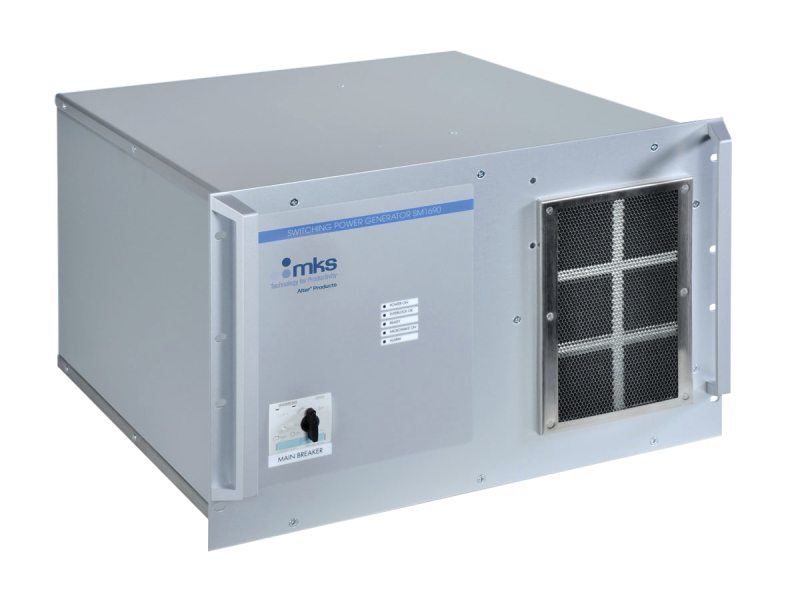

Alter® SM 1690 Air-cooled Switch Mode Microwave Power Supply for 10kW, 2.45 GHz Magnetrons

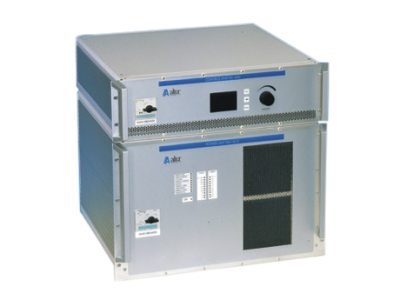

Alter® MPS Industrial Switch Mode Microwave Power Supply Systems for 915 MHz Magnetrons
