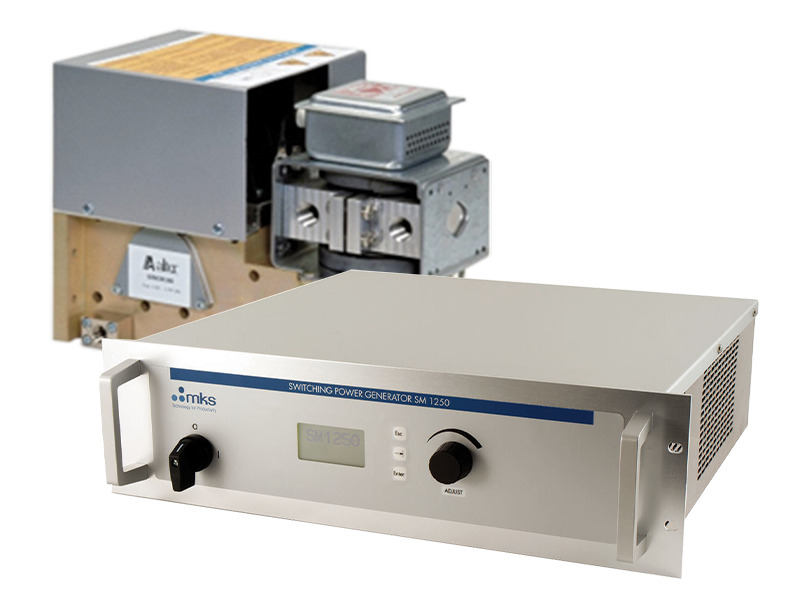

GS Series 2450 MHz Industrial Microwave Generators
Model: GS03040
GS Series 2450 MHz Industrial Microwave Generators
Model: GS03040
Overview
Overview
The Alter® GS03040 Microwave Generator provides 3 kW at 2450 MHz with 3 x 400 V input, and is equipped with reflected power detection for demanding industrial applications.
Technical Specs
- Type2450 MHz Industrial Microwave Generator
- Maximum Power Output300-3000 W
- Frequency2450 MHz
- Power Regulation10-100%
- Line Load Regulation1%
- RippleMax ±3% of output power
- Ambient TemperatureUp to 40°C maximum
- Microwave ConnectionsWR340 waveguide with PDR26 flange
- Remote ControlOptions: PLC, RS232, ANYBUS
- IsolatorIntegrated
- Input Power3 x 400 VAC, 50/60 Hz
- ComplianceCE
