GS Series 2450 MHz Industrial Microwave Generators
Model: GS06540
GS Series 2450 MHz Industrial Microwave Generators
Model: GS06540
Overview
Overview

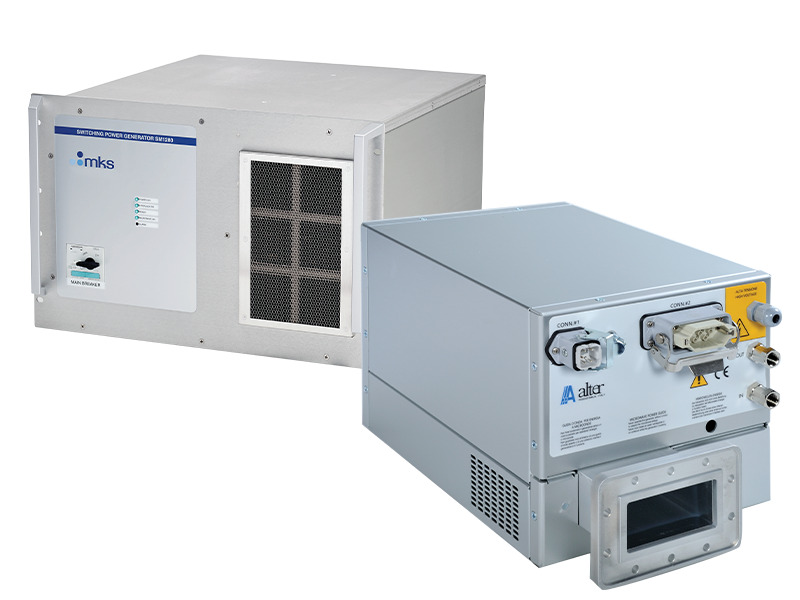

The Alter® GS06540 Microwave Generator provides 6 kW at 2450 MHz with 3 x 400 V input, and is equipped with reflected power detection for demanding industrial applications.
Technical Specs
- Type2450 MHz Industrial Microwave Generator
- Maximum Power Output600-6000 W
- Frequency2450 MHz
- Power Regulation10-100%
- Line Load Regulation3%
- RippleMax ±5% of output power
- Ambient TemperatureUp to 40°C maximum
- Microwave ConnectionsWR340 waveguide with PDR26 flange
- Remote ControlOptions: PLC, RS232, ANYBUS, Display
- IsolatorExternal
- Input Power3 x 400 VAC, 50/60 Hz
- ComplianceCE
Technical Specs
- Type2450 MHz Industrial Microwave Generator
- Maximum Power Output600-6000 W
- Frequency2450 MHz
- Power Regulation10-100%
- Line Load Regulation3%
- RippleMax ±5% of output power
- Ambient TemperatureUp to 40°C maximum
- Microwave ConnectionsWR340 waveguide with PDR26 flange
- Remote ControlOptions: PLC, RS232, ANYBUS, Display
- IsolatorExternal
- Input Power3 x 400 VAC, 50/60 Hz
- ComplianceCE
