GS Series 2450 MHz Industrial Microwave Generators
GS Series 2450 MHz Industrial Microwave Generators

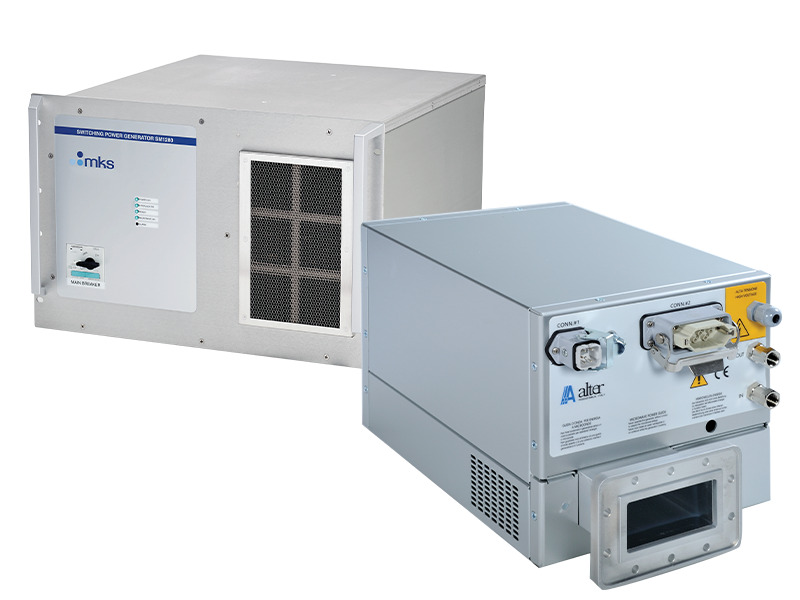

MKS Alter® GS Series Microwave Generators are built on experience and designed with rugged and reliable switch mode power supplies for demanding industrial applications. The GS Series offers compact generators up to 15 kW in a 19 inch standard rack with a remote head and dedicated cables set.
For power up to 3 kW the isolator is integrated in the microwave head. For 6, 10 and 15 kW microwave generators, an external isolator is included. All MKS Alter microwave generators are equipped with reflected power detection.
- Large choice of input line voltage
- Power output range of 200 W - 15 kW
- Configurable remote control: RS232, PLC, Fieldbus interface See All Features
Specifications
- TypeIndustrial Microwave Generator
- Frequency2440 - 2470 MHz
- Power Regulation10-100%
- Line Load Regulation1-10%
- RippleMax 3 to ± 5% of output power
- Ambient TemperatureUp to 40°C maximum
- Microwave ConnectionsWR340 waveguide with PDR26 flange
WR430 waveguide with PDR22 flange - Remote ControlAvailable with PLC, RS232, or ANYBUS
- ComplianceCE
Resources
Literature
GS Series 2450 MHz Industrial Microwave Generators(2.3 MB, PDF)
